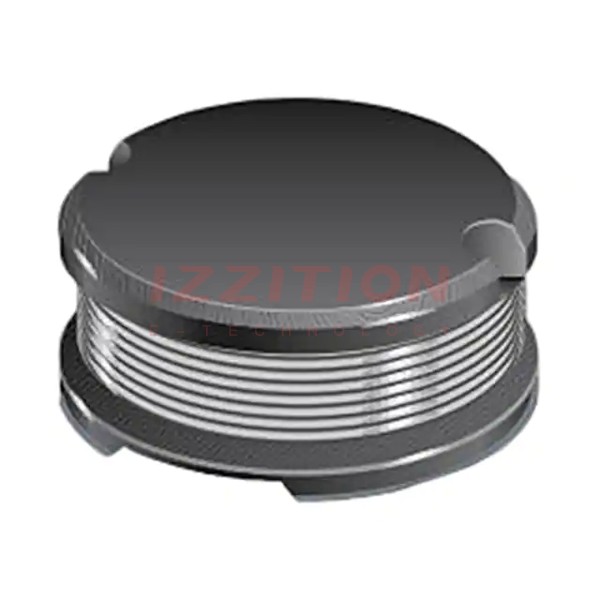

| Part Number | PM32-180M-RC | PM32-181M-RC | PM32-1R0M-RC | PM32-680M-RC | PM32-100M-RC | PM32-120M-RC | PM32-150M-RC |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 18 µH | 180 µH | 1 µH | 68 µH | 10 µH | 12 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 580 mA | 185 mA | 2.1 A | 300 mA | 800 mA | 750 mA | 650 mA |
| Current - Saturation (Isat) | 750mA | 210mA | 2.7A | 320mA | 900mA | 850mA | 800mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 460mOhm Max | 5Ohm Max | 60mOhm Max | 1.85Ohm Max | 250mOhm Max | 280mOhm Max | 400mOhm Max |
| Q @ Freq | 18 @ 2.52MHz | 45 @ 796kHz | 20 @ 7.96MHz | 24 @ 2.52MHz | 18 @ 2.52MHz | 15 @ 2.52MHz | 20 @ 2.52MHz |
| Frequency - Self Resonant | 28MHz | 8.5MHz | 125MHz | 14MHz | 34MHz | 33MHz | 32MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.118" L x 0.110" W (3.00mm x 2.80mm) |
| Height - Seated (Max) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) |
