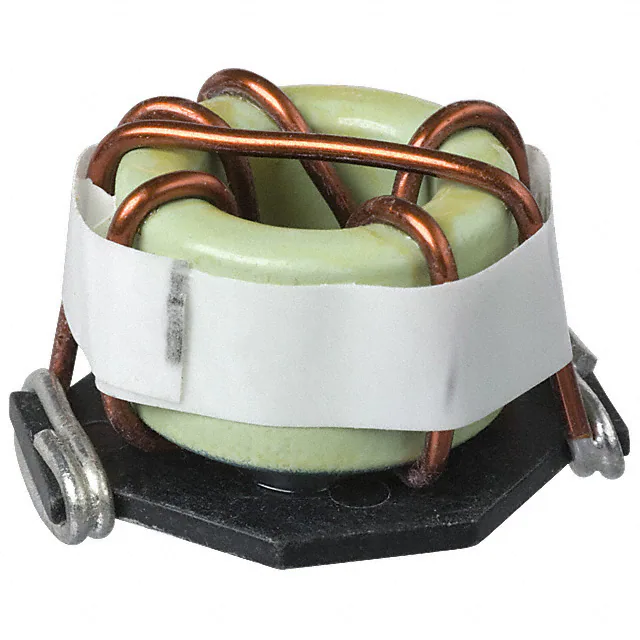

| Part Number | PM2120-1R8M | PM2120-6R8M | PM2110-1R8M | PM2120-1R0M | PM2120-1R2M | PM2120-1R5M |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal |
| Material - Core | Iron | Iron | Iron | Iron | Iron | Iron |
| Inductance | 1.8 µH | 6.8 µH | 1.8 µH | 1 µH | 1.2 µH | 1.5 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 22 A | 14.7 A | 18.5 A | 25.4 A | 25.4 A | 22 A |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 3mOhm Max | 6mOhm Max | 3mOhm Max | 2mOhm Max | 2mOhm Max | 3mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 1.201" L x 1.000" W (30.50mm x 25.40mm) |
| Height - Seated (Max) | 0.820" (20.83mm) | 0.820" (20.83mm) | 0.570" (14.48mm) | 0.820" (20.83mm) | 0.820" (20.83mm) | 0.820" (20.83mm) |
