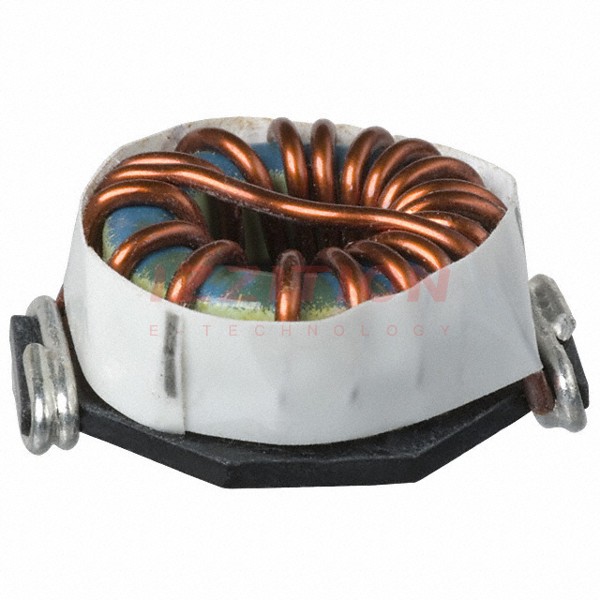

| Part Number | PM2110-121K-RC | PM2120-121K-RC | PM2110-151K-RC | PM2110-221K-RC | PM2110-181K-RC | PM2110-821K-RC | PM2110-101K-RC | PM2110-120K-RC |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal |
| Material - Core | Iron | Iron | Iron | Iron | Iron | Iron | Iron | Iron |
| Inductance | 120 µH | 120 µH | 150 µH | 220 µH | 180 µH | 820 µH | 100 µH | 12 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 5.1 A | 5.8 A | 4.3 A | 3.5 A | 3.7 A | 2 A | 5.4 A | 11.3 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 35mOhm Max | 39mOhm Max | 49mOhm Max | 74mOhm Max | 66mOhm Max | 221mOhm Max | 32mOhm Max | 7mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 1.201" L x 1.000" W (30.50mm x 25.40mm) |
| Height - Seated (Max) | 0.620" (15.75mm) | 0.870" (22.10mm) | 0.590" (14.99mm) | 0.600" (15.24mm) | 0.530" (13.46mm) | 0.600" (15.24mm) | 0.620" (15.75mm) | 0.570" (14.48mm) |
