Please send RFQ , we will respond immediately.

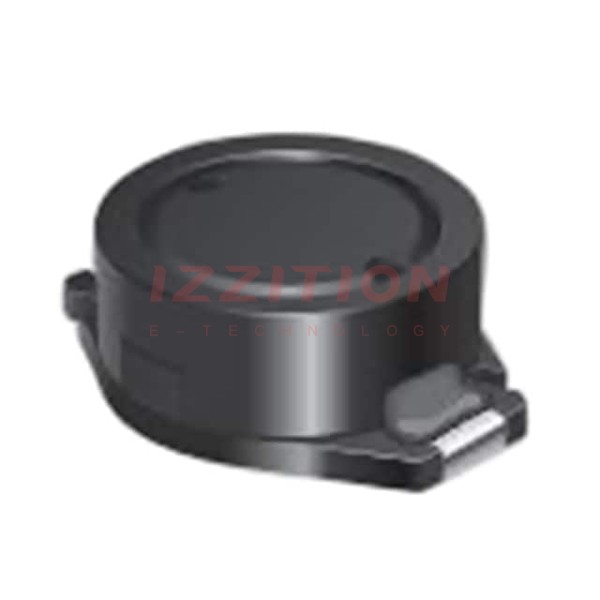

| Part Number | PM1608S-4R7M-RC | PM1608-4R7M-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 4.7 µH | 4.7 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.4 A | 1.5 A |
| Current - Saturation (Isat) | - | 1.5A |
| Shielding | Shielded | Unshielded |
| DC Resistance (DCR) | 60mOhm Max | 90mOhm Max |
| Q @ Freq | 40 @ 200kHz | 17 @ 7.96MHz |
| Frequency - Self Resonant | 105MHz | 50MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 7.96 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.115" (2.92mm) |
