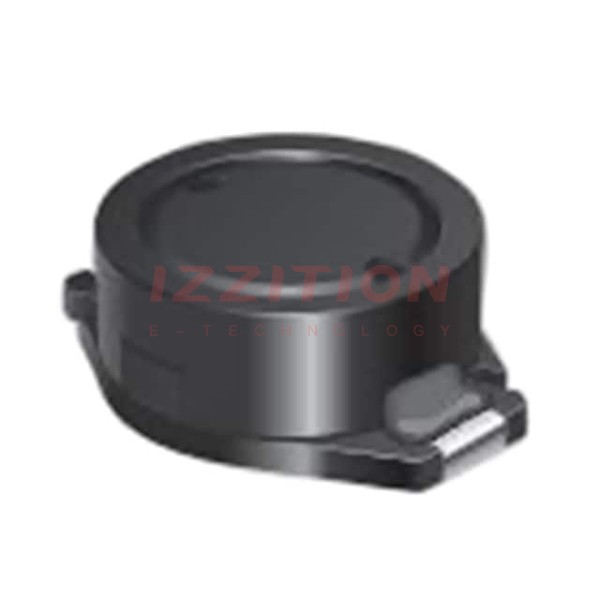

| Part Number | PM1608S-1R0M-RC | PM1608S-1R5M-RC | PM1608-1R0M-RC | PM1608S-100M-RC | PM1608S-150M-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 1.5 µH | 1 µH | 10 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 3 A | 2.8 A | 2.9 A | 1 A | 800 mA |
| Current - Saturation (Isat) | - | - | 2.9A | - | - |
| Shielding | Shielded | Shielded | Unshielded | Shielded | Shielded |
| DC Resistance (DCR) | 40mOhm Max | 45mOhm Max | 50mOhm Max | 75mOhm Max | 90mOhm Max |
| Q @ Freq | 30 @ 200kHz | 30 @ 200kHz | 20 @ 7.96MHz | 40 @ 200kHz | 40 @ 100kHz |
| Frequency - Self Resonant | 250MHz | 125MHz | 130MHz | 38MHz | 33MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -40°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 7.96 MHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.260" L x 0.173" W (6.60mm x 4.40mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.115" (2.92mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
