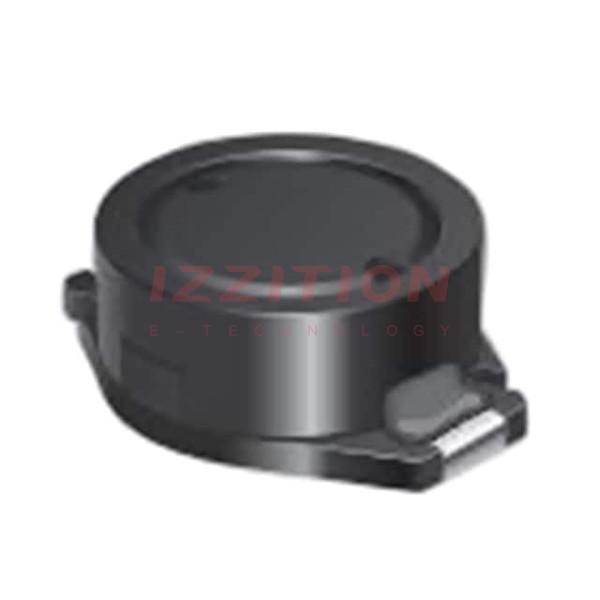

| Part Number | PM1608S-151M-RC | PM1608S-152M-RC | PM1608-151M-RC | PM1608S-101M-RC | PM1608S-150M-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 150 µH | 1.5 mH | 150 µH | 100 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 260 mA | 120 mA | 250 mA | 300 mA | 800 mA |
| Current - Saturation (Isat) | - | - | 270mA | - | - |
| Shielding | Shielded | Shielded | Unshielded | Shielded | Shielded |
| DC Resistance (DCR) | 590mOhm Max | 4.2Ohm Max | 2Ohm Max | 480mOhm Max | 90mOhm Max |
| Q @ Freq | 40 @ 100kHz | 50 @ 100kHz | 41 @ 796kHz | 40 @ 100kHz | 40 @ 100kHz |
| Frequency - Self Resonant | 9MHz | 2MHz | 6MHz | 10MHz | 33MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -40°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 796 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.260" L x 0.173" W (6.60mm x 4.40mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.115" (2.92mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
