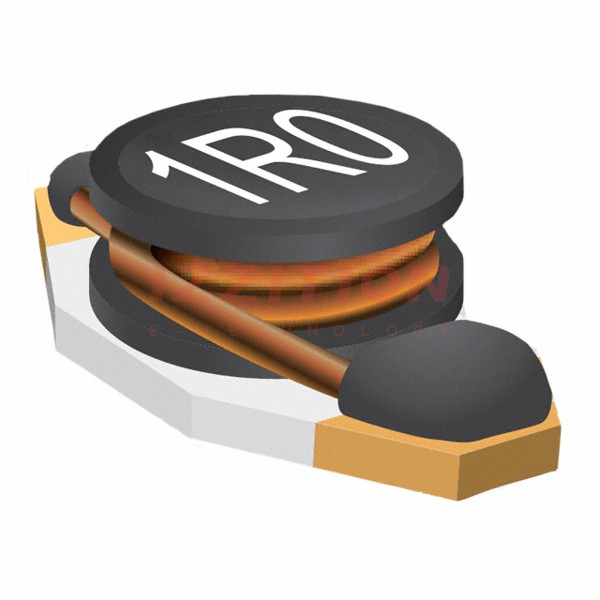

| Part Number | PM1608-330M-RC | PM1608S-330M-RC | PM1608-331M-RC |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 33 µH | 33 µH | 330 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 60 mA | 600 mA | 160 mA |
| Current - Saturation (Isat) | 580mA | - | 180mA |
| Shielding | Unshielded | Shielded | Unshielded |
| DC Resistance (DCR) | 510mOhm Max | 190mOhm Max | 3.8Ohm Max |
| Q @ Freq | 24 @ 2.52MHz | 40 @ 100kHz | 42 @ 796kHz |
| Frequency - Self Resonant | 15MHz | 20MHz | 5MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -55°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 2.52 MHz | 100 kHz | 796 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| Height - Seated (Max) | 0.115" (2.92mm) | 0.118" (3.00mm) | 0.115" (2.92mm) |
