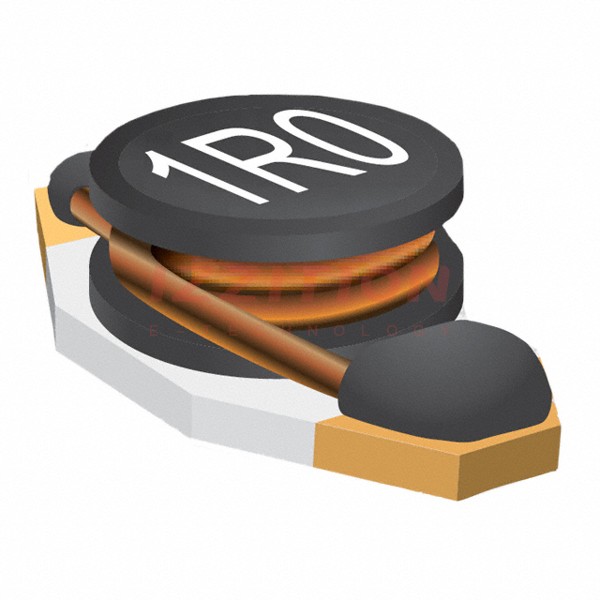

| Part Number | PM1608-1R0M-RC | PM1608S-1R0M-RC | PM1608-1R5M-RC | PM1608-100M-RC | PM1608-150M-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 1 µH | 1.5 µH | 10 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.9 A | 3 A | 2.8 A | 1.1 A | 1 A |
| Current - Saturation (Isat) | 2.9A | - | 2.6A | 1.1A | 900mA |
| Shielding | Unshielded | Shielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 50mOhm Max | 40mOhm Max | 50mOhm Max | 160mOhm Max | 230mOhm Max |
| Q @ Freq | 20 @ 7.96MHz | 30 @ 200kHz | 19 @ 7.96MHz | 17 @ 2.52MHz | 17 @ 2.52MHz |
| Frequency - Self Resonant | 130MHz | 250MHz | 115MHz | 35MHz | 30MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -55°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 7.96 MHz | 100 kHz | 7.96 MHz | 2.52 MHz | 2.52 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| Height - Seated (Max) | 0.115" (2.92mm) | 0.118" (3.00mm) | 0.115" (2.92mm) | 0.115" (2.92mm) | 0.115" (2.92mm) |
