PM13560S-100M-RC
  • Share:

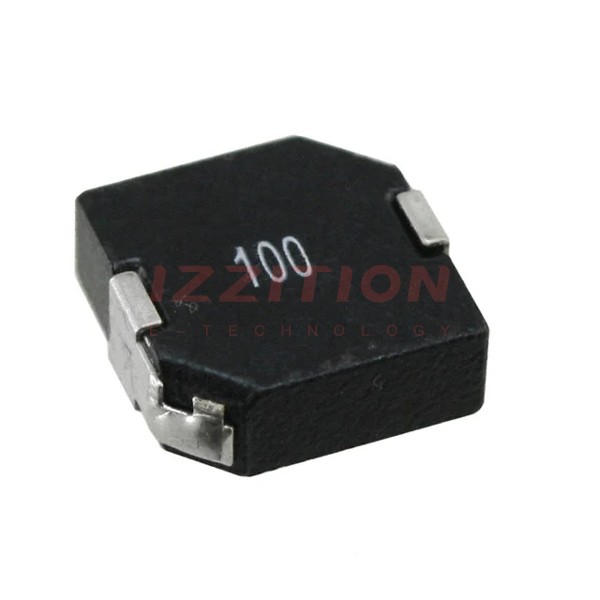

Bourns Inc. PM13560S-100M-RC

Manufacturer No:
PM13560S-100M-RC
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
PM13560S-100M-RC Datasheet
ECAD Model:
-
Description:
FIXED IND 10UH 9A 25.5 MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Iron
Inductance:10 µH
Tolerance:±20%
Current Rating (Amps):9 A
Current - Saturation (Isat):16A
Shielding:Shielded
DC Resistance (DCR):25.5mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 150°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.547" L x 0.531" W (13.90mm x 13.50mm)
Height - Seated (Max):0.232" (5.90mm)
0 Remaining View Similar

In Stock

$2.52
373

Please send RFQ , we will respond immediately.
