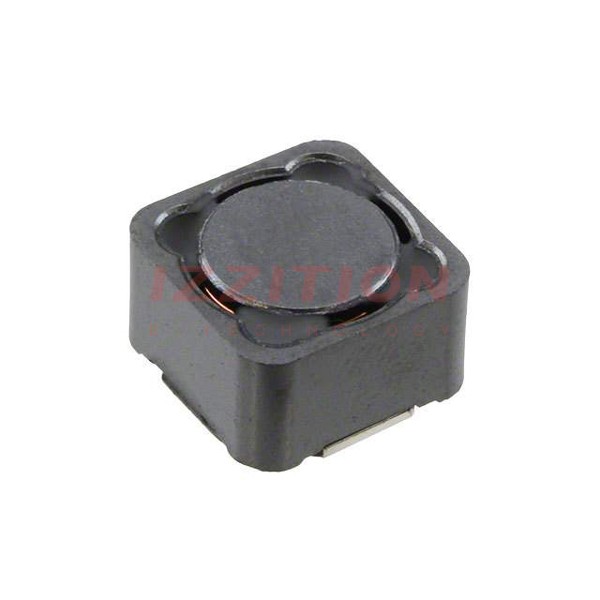

| Part Number | PM127SH-681M-RC | PM127SH-181M-RC | PM127SH-680M-RC |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 680 µH | 180 µH | 68 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 750 mA | 1.7 A | 2.4 A |
| Current - Saturation (Isat) | 970mA | 1.8A | 2.3A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.3Ohm Max | 300mOhm Max | 120mOhm Max |
| Q @ Freq | 26 @ 796kHz | 24 @ 796kHz | 20 @ 2.52MHz |
| Frequency - Self Resonant | 1.7MHz | 4MHz | 6.5MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) |
