PM127SH-330M-RC
  • Share:

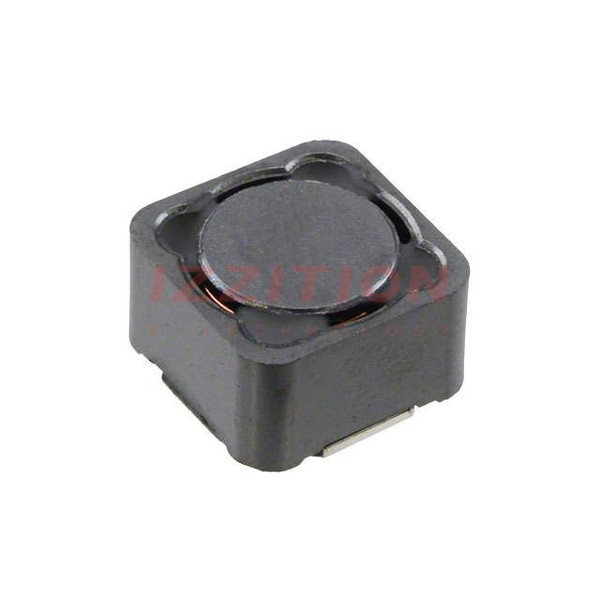

Bourns Inc. PM127SH-330M-RC

Manufacturer No:
PM127SH-330M-RC
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
PM127SH-330M-RC Datasheet
ECAD Model:
-
Description:
FIXED IND 33UH 3.5A 57 MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:33 µH
Tolerance:±20%
Current Rating (Amps):3.5 A
Current - Saturation (Isat):3.3A
Shielding:Shielded
DC Resistance (DCR):57mOhm Max
Q @ Freq:28 @ 2.52MHz
Frequency - Self Resonant:9.5MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max):0.315" (8.00mm)
0 Remaining View Similar

In Stock

$1.30
473

Please send RFQ , we will respond immediately.

Similar Products

Part Number PM127SH-330M-RC PM127SH-331M-RC   PM127SH-390M-RC   PM124SH-330M-RC
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active Active
Type Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound
Material - Core Ferrite Ferrite Ferrite Ferrite
Inductance 33 µH 330 µH 39 µH 33 µH
Tolerance ±20% ±20% ±20% ±20%
Current Rating (Amps) 3.5 A 1.1 A 3.2 A 2.3 A
Current - Saturation (Isat) 3.3A 1.4A 3.1A 2.1A
Shielding Shielded Shielded Shielded Shielded
DC Resistance (DCR) 57mOhm Max 600mOhm Max 70mOhm Max 97mOhm Max
Q @ Freq 28 @ 2.52MHz 18 @ 796kHz 24 @ 2.52MHz 19 @ 2.52MHz
Frequency - Self Resonant 9.5MHz 2.9MHz 8.5MHz 15MHz
Ratings - - - -
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Inductance Frequency - Test 100 kHz 100 kHz 100 kHz 100 kHz
Features - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard Nonstandard Nonstandard
Supplier Device Package - - - -
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm) 0.492" L x 0.492" W (12.50mm x 12.50mm) 0.492" L x 0.492" W (12.50mm x 12.50mm) 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.315" (8.00mm) 0.315" (8.00mm) 0.315" (8.00mm) 0.177" (4.50mm)
