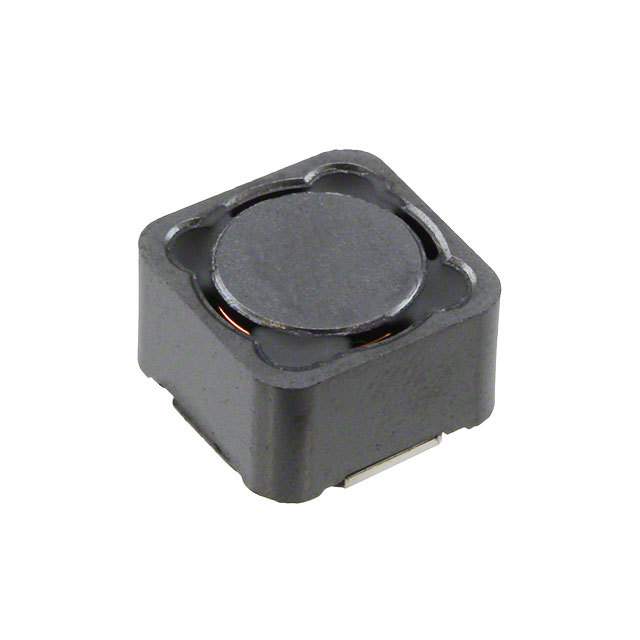

| Part Number | PM127SH-2R4N-RC | PM127SH-2R4Y-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 2.4 µH | - |
| Tolerance | -20%, +40% | - |
| Current Rating (Amps) | 9.2 A | - |
| Current - Saturation (Isat) | 10.5A | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 10mOhm Max | - |
| Q @ Freq | 20 @ 7.96MHz | - |
| Frequency - Self Resonant | 45MHz | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.315" (8.00mm) | 0.315" (8.00mm) |
