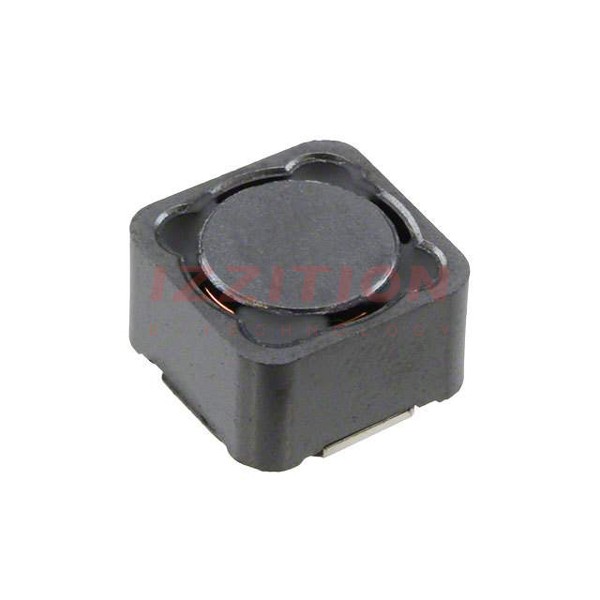

| Part Number | PM127SH-102M-RC | PM127SH-100M-RC | PM127SH-101M-RC |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 1 mH | 10 µH | 100 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 680 mA | 6 A | 2.1 A |
| Current - Saturation (Isat) | 800mA | 6.3A | 2A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.7Ohm Max | 19.5mOhm Max | 150mOhm Max |
| Q @ Freq | 40 @ 252kHz | 24 @ 2.52MHz | 18 @ 796kHz |
| Frequency - Self Resonant | 1.3MHz | 17MHz | 4.5MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) |
