PM125S-220M-RC
  • Share:

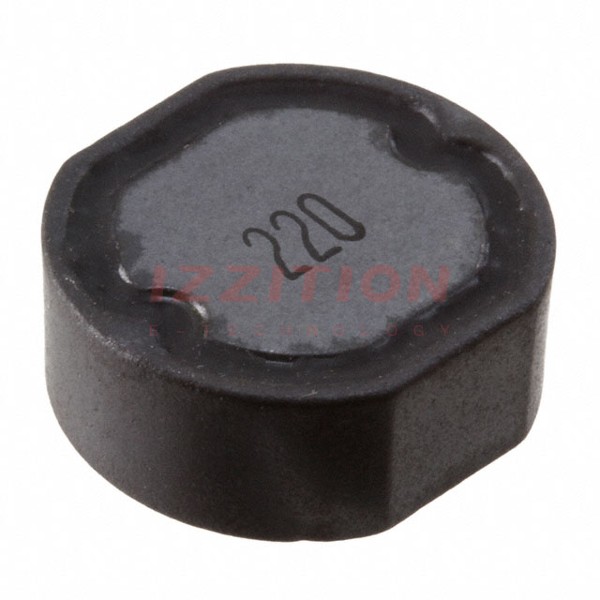

Bourns Inc. PM125S-220M-RC

Manufacturer No:
PM125S-220M-RC
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
PM125S-220M-RC Datasheet
ECAD Model:
-
Description:
FIXED IND 22UH 2.2A 70 MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):2.2 A
Current - Saturation (Isat):4.04A
Shielding:Shielded
DC Resistance (DCR):70mOhm Max
Q @ Freq:-
Frequency - Self Resonant:15MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.496" L x 0.457" W (12.60mm x 11.60mm)
Height - Seated (Max):0.232" (5.90mm)
0 Remaining View Similar

In Stock

-
204

Please send RFQ , we will respond immediately.
