PM105SB-560L-RC
  • Share:

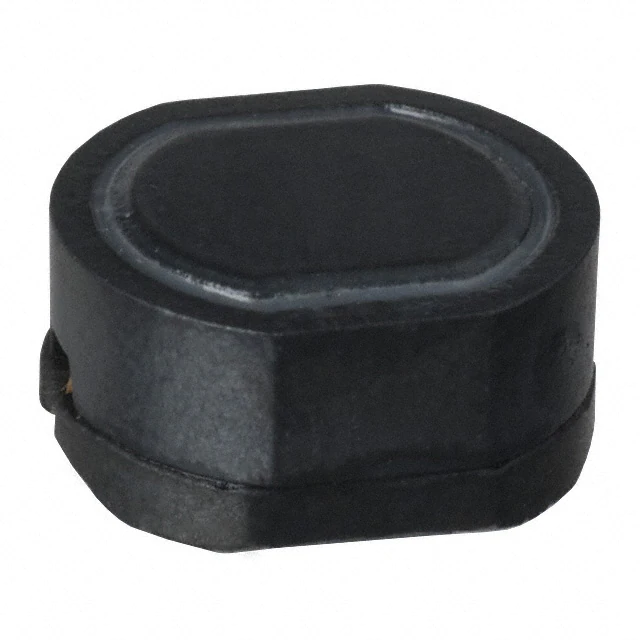

Bourns Inc. PM105SB-560L-RC

Manufacturer No:
PM105SB-560L-RC
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
PM105SB-560L-RC Datasheet
ECAD Model:
-
Description:
FIXED IND 56UH 930MA 190MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:56 µH
Tolerance:±15%
Current Rating (Amps):930 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):190mOhm Max
Q @ Freq:26 @ 2.52MHz
Frequency - Self Resonant:11MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.390" L x 0.390" W (9.90mm x 9.90mm)
Height - Seated (Max):0.189" (4.80mm)
0 Remaining View Similar

In Stock

$0.51
592

Please send RFQ , we will respond immediately.
