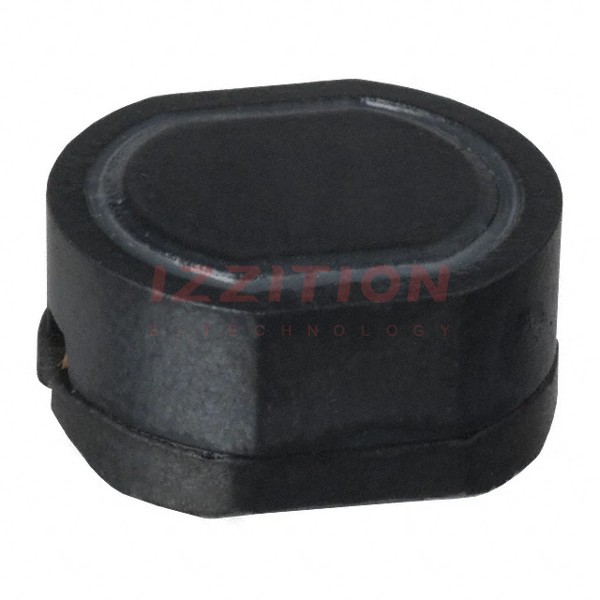

| Part Number | PM105SB-330L-RC | PM105SB-390L-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 33 µH | 39 µH |
| Tolerance | ±15% | ±15% |
| Current Rating (Amps) | 1.2 A | 1.1 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 110mOhm Max | 120mOhm Max |
| Q @ Freq | 27 @ 2.52MHz | 31 @ 2.52MHz |
| Frequency - Self Resonant | 14MHz | 14MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.390" L x 0.390" W (9.90mm x 9.90mm) | 0.390" L x 0.390" W (9.90mm x 9.90mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) |
