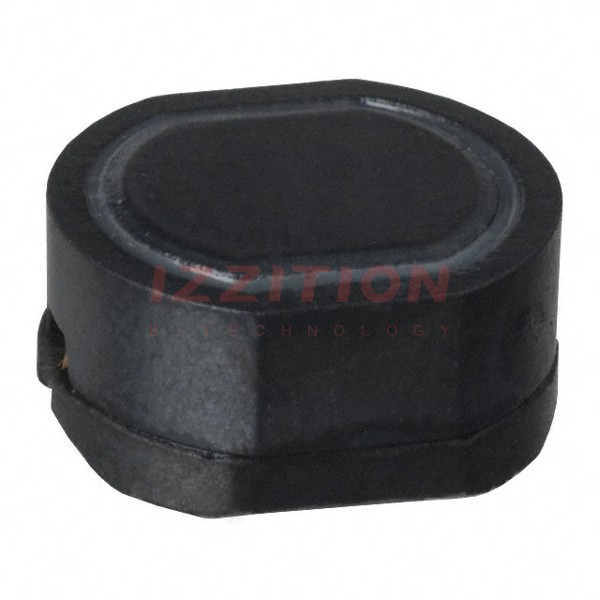

| Part Number | PM105SB-120M-RC | PM105SB-150M-RC | PM105SB-220M-RC | PM105SB-180M-RC | PM105SB-100M-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 µH | 15 µH | 22 µH | 18 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.9 A | 1.7 A | 1.4 A | 1.6 A | 2.1 A |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 70mOhm Max | 70mOhm Max | 80mOhm Max | 80mOhm Max | 60mOhm Max |
| Q @ Freq | 40 @ 2.52MHz | 35 @ 2.52MHz | 35 @ 2.52MHz | 39 @ 2.52MHz | 39 @ 2.52MHz |
| Frequency - Self Resonant | 26MHz | 24MHz | 18MHz | 21MHz | 29MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.390" L x 0.390" W (9.90mm x 9.90mm) | 0.390" L x 0.390" W (9.90mm x 9.90mm) | 0.390" L x 0.390" W (9.90mm x 9.90mm) | 0.390" L x 0.390" W (9.90mm x 9.90mm) | 0.390" L x 0.390" W (9.90mm x 9.90mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) |
