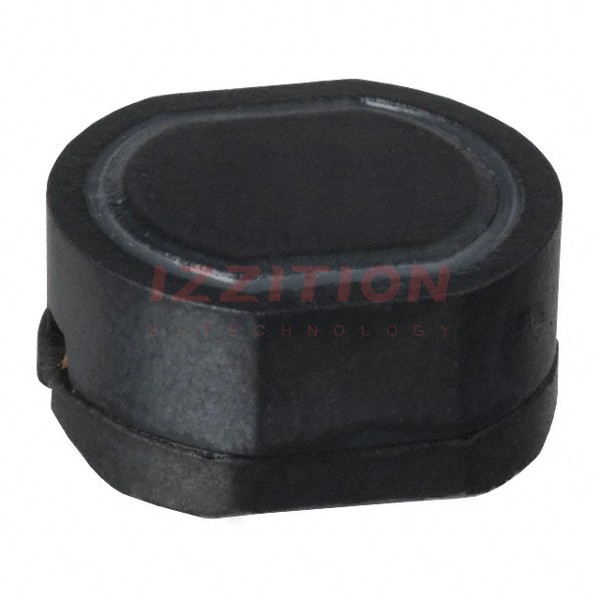

| Part Number | PM105S-220M | PM105S-270M | PM105S-820M | PM105S-221M | PM105-220M | PM105S-120M |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 27 µH | 82 µH | 220 µH | 22 µH | 12 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.71 A | 1.54 A | 880 mA | 540 mA | 1.96 A | 2.31 A |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Unshielded | Shielded |
| DC Resistance (DCR) | 90mOhm Max | 110mOhm Max | 280mOhm Max | 690mOhm Max | 100mOhm | 60mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | 21MHz | 18MHz | 10MHz | 5MHz | 15MHz | 27MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 100°C |
| Inductance Frequency - Test | 2.52 MHz | 2.52 MHz | 2.52 MHz | 1 kHz | 2.52 MHz | 2.52 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) |
| Height - Seated (Max) | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.228" (5.80mm) | 0.217" (5.50mm) |
