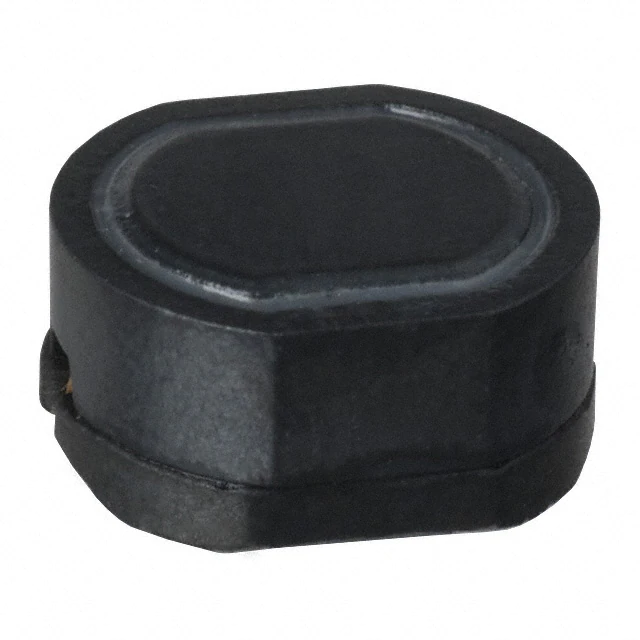

| Part Number | PM105S-101M | PM105S-121M | PM105S-151M | PM105S-181M | PM105S-100M |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 100 µH | 120 µH | 150 µH | 180 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 800 mA | 730 mA | 650 mA | 600 mA | 2.52 A |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 350mOhm Max | 380mOhm Max | 450mOhm Max | 620mOhm Max | 60mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | 7MHz | 7MHz | 6MHz | 5MHz | 31MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 2.52 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.394" L x 0.362" W (10.00mm x 9.20mm) |
| Height - Seated (Max) | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.217" (5.50mm) |
