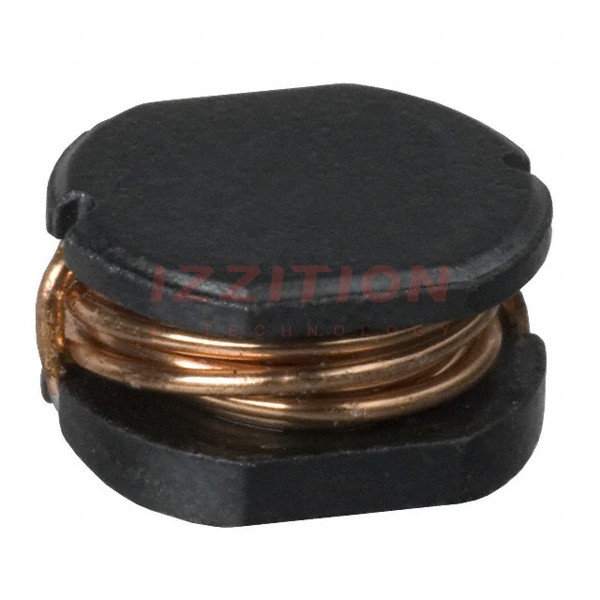

| Part Number | PM105-391K | PM105-331K |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 390 µH | 330 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 480 mA | 520 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.3Ohm | 1.15Ohm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 3MHz | 4MHz |
| Ratings | - | - |
| Operating Temperature | -30°C ~ 100°C | -30°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.386" L x 0.386" W (9.80mm x 9.80mm) |
| Height - Seated (Max) | 0.228" (5.80mm) | 0.228" (5.80mm) |
