PM104SH-5R2-RC
  • Share:

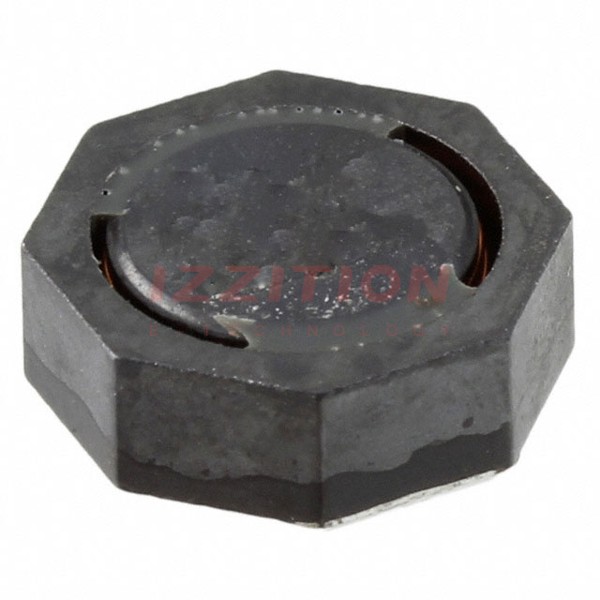

Bourns Inc. PM104SH-5R2-RC

Manufacturer No:
PM104SH-5R2-RC
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
PM104SH-5R2-RC Datasheet
ECAD Model:
-
Description:
FIXED IND 5.2UH 4.6A 22 MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:5.2 µH
Tolerance:±30%
Current Rating (Amps):4.6 A
Current - Saturation (Isat):4.8A
Shielding:Shielded
DC Resistance (DCR):22mOhm Max
Q @ Freq:12 @ 7.96MHz
Frequency - Self Resonant:30MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:7.96 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max):0.161" (4.10mm)
0 Remaining View Similar

In Stock

$0.83
704

Please send RFQ , we will respond immediately.
