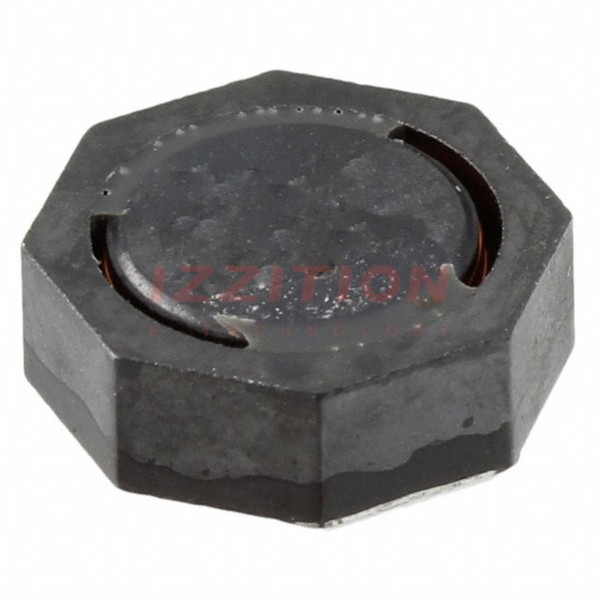

| Part Number | PM104SH-220-RC | PM104SH-221-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 22 µH | 220 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 2.2 A | 650 mA |
| Current - Saturation (Isat) | 2.3A | 650mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 55.8mOhm Max | 565mOhm Max |
| Q @ Freq | 20 @ 2.52MHz | 22 @ 796kHz |
| Frequency - Self Resonant | 12MHz | 4MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 2.52 MHz | 796 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.161" (4.10mm) | 0.161" (4.10mm) |
