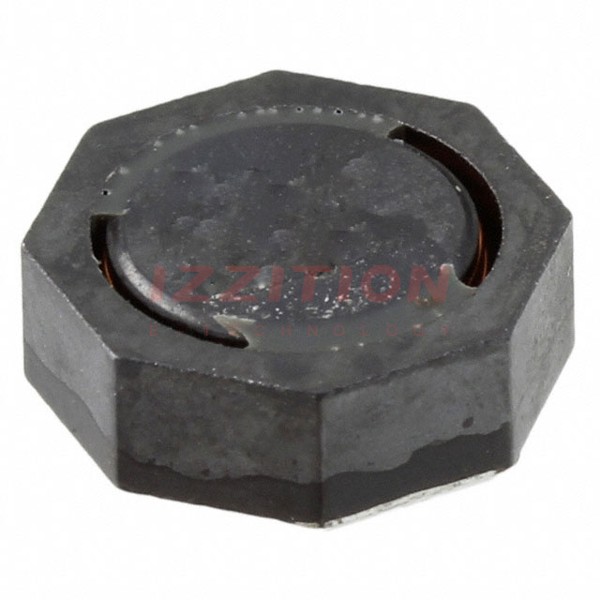

| Part Number | PM104SH-1R5-RC | PM104SH-2R5-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1.5 µH | 2.5 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 7.2 A | 6.1 A |
| Current - Saturation (Isat) | 7A | 6A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 5.2mOhm Max | 12.5mOhm Max |
| Q @ Freq | 14 @ 7.96MHz | 12 @ 7.96MHz |
| Frequency - Self Resonant | 65MHz | 50MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.161" (4.10mm) | 0.161" (4.10mm) |
