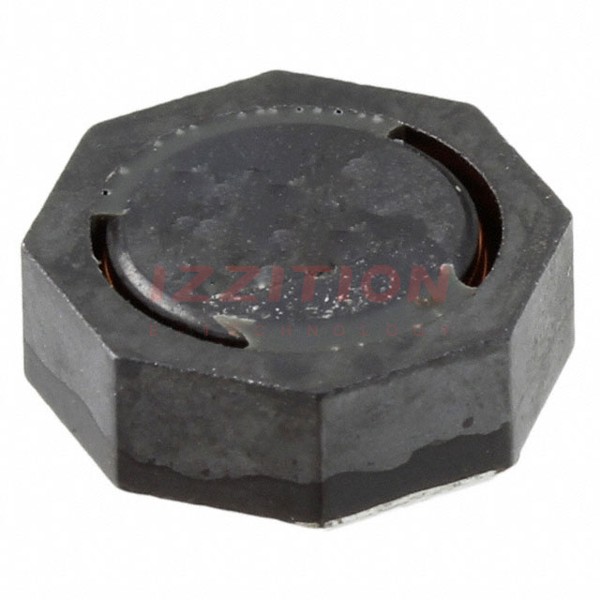

| Part Number | PM104SH-151-RC | PM104SH-101-RC | PM104SH-150-RC |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 150 µH | 100 µH | 15 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 900 mA | 1.3 A | 2.8 A |
| Current - Saturation (Isat) | 800mA | 1.1A | 2.7A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 358mOhm Max | 220mOhm Max | 37mOhm Max |
| Q @ Freq | 20 @ 796kHz | 24 @ 796kHz | 24 @ 2.52MHz |
| Frequency - Self Resonant | 5MHz | 6MHz | 16MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 796 kHz | 796 kHz | 2.52 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.161" (4.10mm) | 0.161" (4.10mm) | 0.161" (4.10mm) |
