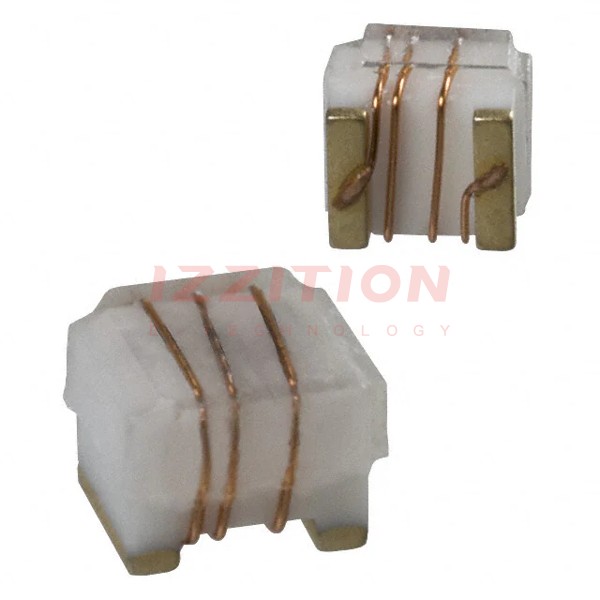

| Part Number | PM1008-12NM | PM1008-15NM | PM1008-18NM | PM1008-22NM | PM1008-10NM |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Inductance | 12 nH | 15 nH | 18 nH | 22 nH | 10 nH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1 A | 1 A | 1 A | 1 A | 1 A |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 90mOhm | 100mOhm | 110mOhm | 120mOhm | 80mOhm |
| Q @ Freq | 50 @ 500MHz | 50 @ 500MHz | 50 @ 350MHz | 55 @ 350MHz | 50 @ 500MHz |
| Frequency - Self Resonant | 3.3GHz | 2.5GHz | 2.5GHz | 2.4GHz | 4.1GHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 50 MHz | 50 MHz | 50 MHz | 50 MHz | 50 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
