Please send RFQ , we will respond immediately.

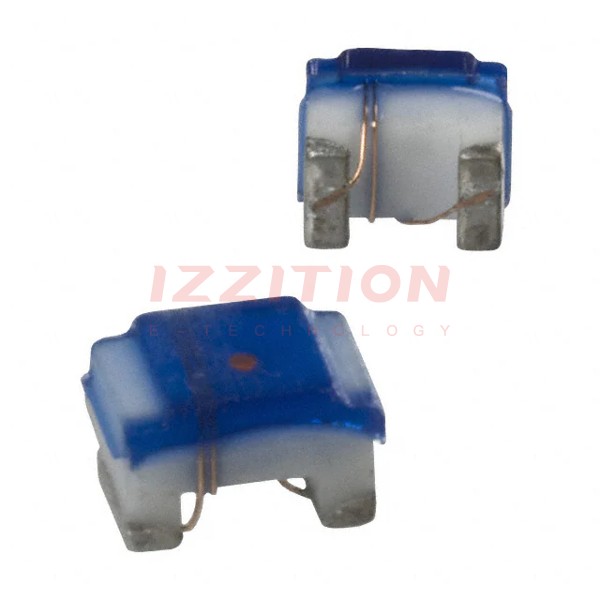

| Part Number | PM0805-R18K-RC | PM0805-R10K-RC | PM0805-R12K-RC | PM0805-R15K-RC |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Alumina | Alumina | Alumina | Alumina |
| Inductance | 180 nH | 100 nH | 120 nH | 150 nH |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 350 mA | 400 mA | 400 mA | 400 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 850mOhm | 430mOhm | 480mOhm | 670mOhm |
| Q @ Freq | 50 @ 250MHz | 60 @ 500MHz | 50 @ 250MHz | 50 @ 250MHz |
| Frequency - Self Resonant | 900MHz | 1.2GHz | 1.1GHz | 950MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz | 150 MHz | 150 MHz | 100 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.083" L x 0.059" W (2.10mm x 1.50mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) |
