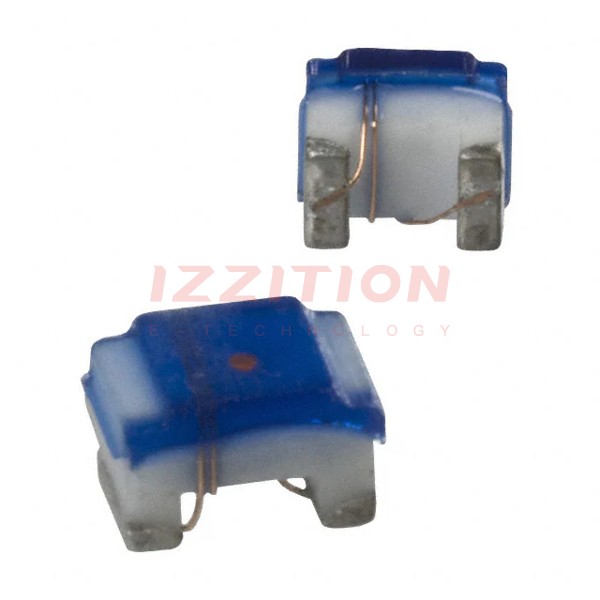

| Part Number | PM0805-R12K | PM0805-R15K | PM0805-R18K | PM0805-R22K | PM0805-R10K |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Inductance | 120 nH | 150 nH | 180 nH | 220 nH | 100 nH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 400 mA | 400 mA | 400 mA | 400 mA | 400 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 510mOhm Max | 560mOhm Max | 640mOhm Max | 700mOhm Max | 460mOhm Max |
| Q @ Freq | 50 @ 250MHz | 50 @ 250MHz | 50 @ 250MHz | 50 @ 250MHz | 65 @ 500MHz |
| Frequency - Self Resonant | 1.1GHz | 920MHz | 870MHz | 850MHz | 1.2GHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz | 100 MHz | 100 MHz | 100 MHz | 150 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.083" L x 0.059" W (2.10mm x 1.50mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) |
