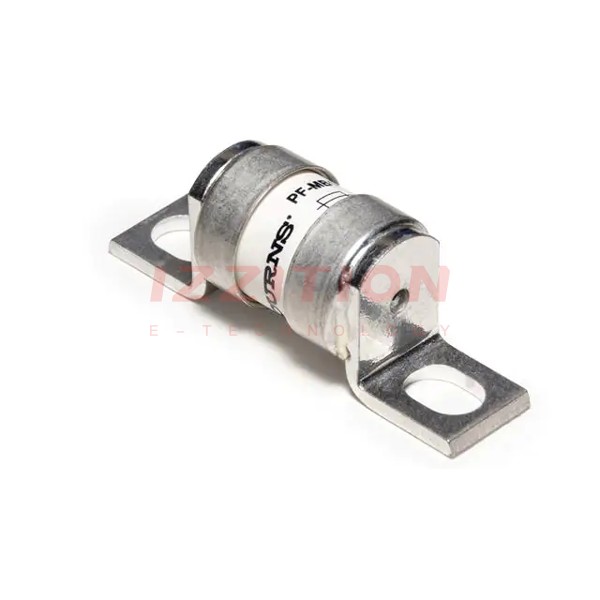

| Part Number | PF-MB1-80 | PF-MB1-180 | PF-MB1-50 | PF-MB1-60 | PF-MB1-70 |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 80A | 180A | 50A | 60A | 70A |
| Voltage Rating - AC | 240 V | 240 V | 240 V | 240 V | 240 V |
| Voltage Rating - DC | 150 V | 150 V | 150 V | 150 V | 150 V |
| Response Time | - | - | - | - | - |
| Applications | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors |
| Features | - | - | - | - | - |
| Class | - | - | - | - | - |
| Approval Agency | cURus, UL | cURus, UL | cURus, UL | cURus, UL | cURus, UL |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 160kA AC, 50kA DC | 160kA AC, 50kA DC | 160kA AC, 50kA DC | 160kA AC, 50kA DC | 160kA AC, 50kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 0.685" Dia x 1.053" L (17.40mm x 26.75mm) | 0.685" Dia x 1.053" L (17.40mm x 26.75mm) | 0.685" Dia x 1.053" L (17.40mm x 26.75mm) | 0.685" Dia x 1.053" L (17.40mm x 26.75mm) | 0.685" Dia x 1.053" L (17.40mm x 26.75mm) |
