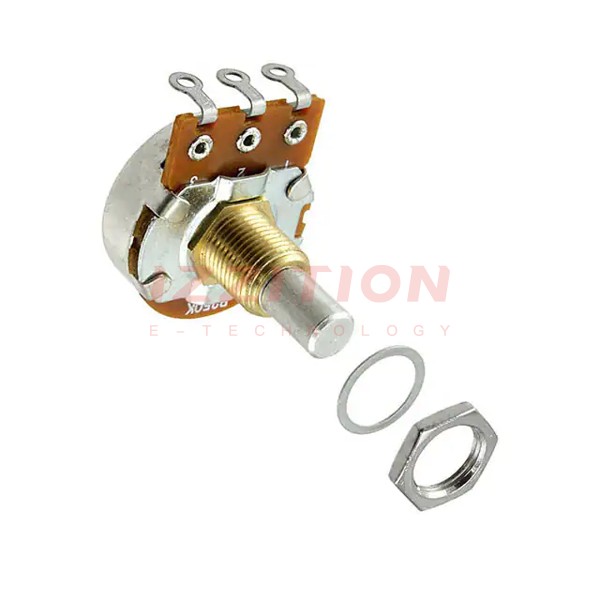

| Part Number | PDB183-GTR02-504A2 | PDB183-GTR32-504A2 | PDB183-GTR01-504A2 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Resistance (Ohms) | 500k | 500k | 500k |
| Tolerance | ±20% | ±20% | ±20% |
| Power (Watts) | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W |
| Built in Switch | Push-Pull, DPDT | Push-Pull, DPDT | Push-Pull, DPDT |
| Number of Turns | 1 | 1 | 1 |
| Features | - | - | - |
| Taper | Logarithmic | Logarithmic | Logarithmic |
| Number of Gangs | 1 | 1 | 1 |
| Adjustment Type | User Defined | User Defined | User Defined |
| Temperature Coefficient | - | - | - |
| Rotation | 300° | 300° | 300° |
| Resistive Material | Carbon | Carbon | Carbon |
| Termination Style | Solder Lug | Solder Lug | Solder Lug |
| Actuator Type | Round | Round | Knurled and Slotted |
| Actuator Length | 0.748" (19.00mm) | 1.083" (27.50mm) | 0.748" (19.00mm) |
| Actuator Diameter | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Bushing Thread | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount |
