PDB183-GTR01-504A2
  • Share:

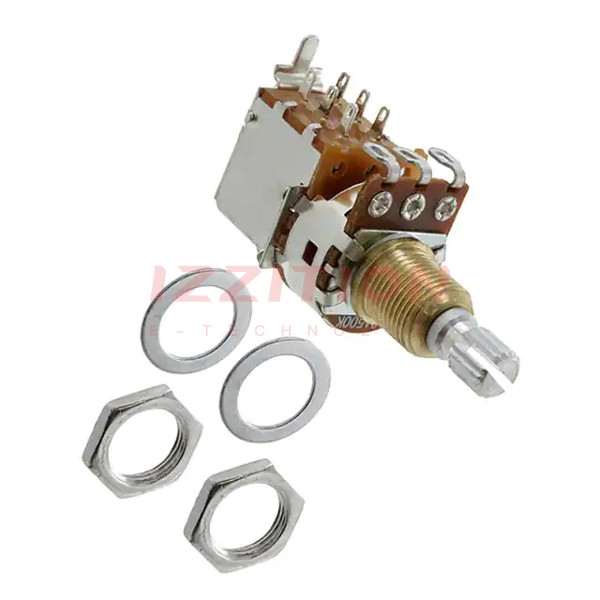

Bourns Inc. PDB183-GTR01-504A2

Manufacturer No:
PDB183-GTR01-504A2
Manufacturer:
Bourns Inc.
Package:
Bulk
Datasheet:
PDB183-GTR01-504A2 Datasheet
ECAD Model:
-
Description:
POT 500K OHM 1/10W CARBON LOG
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance (Ohms):500k
Tolerance:±20%
Power (Watts):0.1W, 1/10W
Built in Switch:Push-Pull, DPDT
Number of Turns:1
Features:-
Taper:Logarithmic
Number of Gangs:1
Adjustment Type:User Defined
Temperature Coefficient:-
Rotation:300°
Resistive Material:Carbon
Termination Style:Solder Lug
Actuator Type:Knurled and Slotted
Actuator Length:0.748" (19.00mm)
Actuator Diameter:0.236" (6.00mm)
Bushing Thread:-
Mounting Type:Panel Mount
0 Remaining View Similar

In Stock

$6.09
63

Please send RFQ , we will respond immediately.

Similar Products

Part Number PDB183-GTR01-504A2 PDB183-GTR31-504A2   PDB183-GTR02-504A2   PDB185-GTR01-504A2   PDB181-GTR01-504A2   PDB182-GTR01-504A2   PDB183-GTR01-104A2
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active Active Active Active Active
Resistance (Ohms) 500k 500k 500k 500k 500k 500k 100k
Tolerance ±20% ±20% ±20% ±20% ±20% ±20% ±20%
Power (Watts) 0.1W, 1/10W 0.1W, 1/10W 0.1W, 1/10W 0.05W, 1/20W 0.1W, 1/10W 0.06W 0.1W, 1/10W
Built in Switch Push-Pull, DPDT Push-Pull, DPDT Push-Pull, DPDT Push-Push, DPDT None None Push-Pull, DPDT
Number of Turns 1 1 1 1 1 1 1
Features - - - - - - -
Taper Logarithmic Logarithmic Logarithmic Logarithmic Logarithmic Logarithmic Logarithmic
Number of Gangs 1 1 1 1 1 2 1
Adjustment Type User Defined User Defined User Defined User Defined User Defined User Defined User Defined
Temperature Coefficient - - - - - - -
Rotation 300° 300° 300° 300° 300° 300° 300°
Resistive Material Carbon Carbon Carbon Carbon Carbon Carbon Carbon
Termination Style Solder Lug Solder Lug Solder Lug Solder Lug Solder Lug Solder Lug Solder Lug
Actuator Type Knurled and Slotted Knurled and Slotted Round Knurled and Slotted Knurled and Slotted Knurled and Slotted Knurled and Slotted
Actuator Length 0.748" (19.00mm) 1.083" (27.50mm) 0.748" (19.00mm) 0.748" (19.00mm) 0.748" (19.00mm) 0.748" (19.00mm) 0.748" (19.00mm)
Actuator Diameter 0.236" (6.00mm) 0.236" (6.00mm) 0.236" (6.00mm) 0.236" (6.00mm) 0.236" (6.00mm) 0.236" (6.00mm) 0.236" (6.00mm)
Bushing Thread - - - 3/8-32 3/8-32 3/8-32 -
Mounting Type Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount
