Please send RFQ , we will respond immediately.

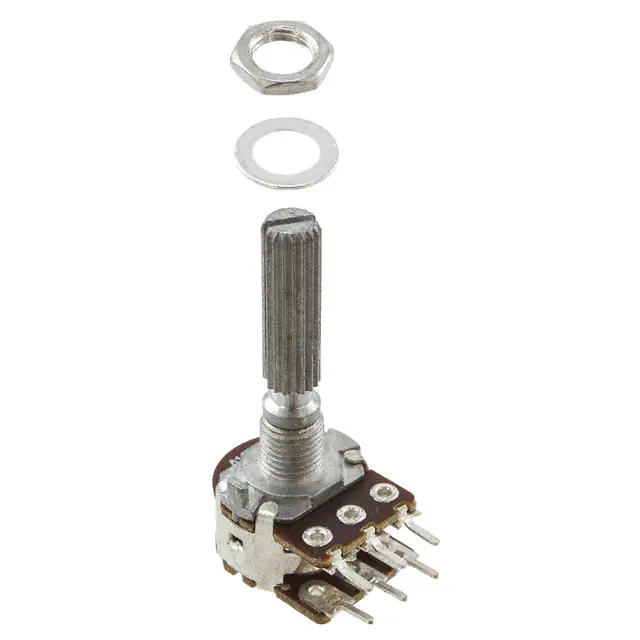

| Part Number | PDB182-K230K-104A | PDB182-K430K-104A | PDB182-K230K-104B | PDB182-B230K-104A |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Resistance (Ohms) | 100k | 100k | 100k | 100k |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Power (Watts) | 0.06W | 0.06W | 0.125W, 1/8W | 0.06W |
| Built in Switch | Detent | None | Detent | Detent |
| Number of Turns | 1 | 1 | 1 | 1 |
| Features | - | - | - | - |
| Taper | Logarithmic | Logarithmic | Linear | Logarithmic |
| Number of Gangs | 2 | 2 | 2 | 2 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Temperature Coefficient | - | - | - | - |
| Rotation | 300° | 300° | 300° | 300° |
| Resistive Material | Carbon | Carbon | Carbon | Carbon |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins |
| Actuator Type | Knurled and Slotted | Knurled and Slotted | Knurled and Slotted | Knurled and Slotted |
| Actuator Length | 1.181" (30.00mm) | 1.181" (30.00mm) | 1.181" (30.00mm) | 1.181" (30.00mm) |
| Actuator Diameter | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Bushing Thread | M7 x 0.75 | M7 x 0.75 | M7 x 0.75 | M7 x 0.75 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
