PDB181-K420K-504A2
  • Share:

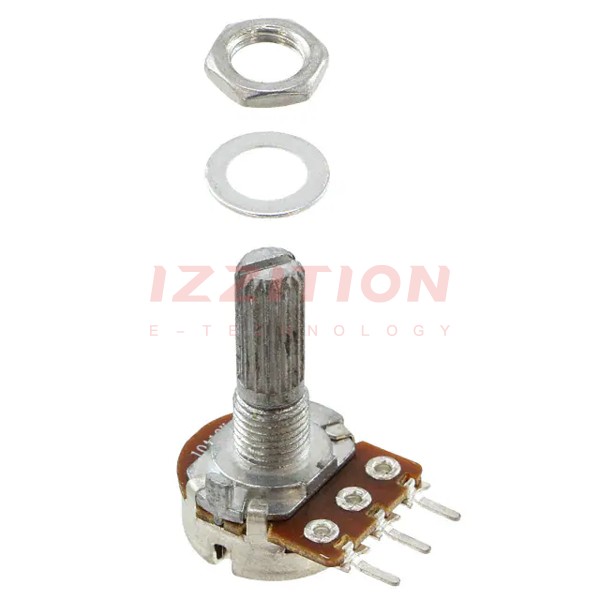

Bourns Inc. PDB181-K420K-504A2

Manufacturer No:
PDB181-K420K-504A2
Manufacturer:
Bourns Inc.
Package:
Tray
Datasheet:
PDB181-K420K-504A2 Datasheet
ECAD Model:
-
Description:
POT 500K OHM 1/10W CARBON LOG
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance (Ohms):500k
Tolerance:±20%
Power (Watts):0.1W, 1/10W
Built in Switch:None
Number of Turns:1
Features:-
Taper:Logarithmic
Number of Gangs:1
Adjustment Type:Side Adjustment
Temperature Coefficient:-
Rotation:300°
Resistive Material:Carbon
Termination Style:PC Pins
Actuator Type:Knurled and Slotted
Actuator Length:0.787" (20.00mm)
Actuator Diameter:0.236" (6.00mm)
Bushing Thread:M7 x 0.75
Mounting Type:Panel Mount
0 Remaining View Similar

In Stock

$0.78
384

Please send RFQ , we will respond immediately.

Similar Products

Part Number PDB181-K420K-504A2 PDB181-K420K-104A2   PDB181-K420K-503A2
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active
Resistance (Ohms) 500k 100k 50k
Tolerance ±20% ±20% ±20%
Power (Watts) 0.1W, 1/10W 0.1W, 1/10W 0.1W, 1/10W
Built in Switch None None None
Number of Turns 1 1 1
Features - - -
Taper Logarithmic Logarithmic Logarithmic
Number of Gangs 1 1 1
Adjustment Type Side Adjustment Side Adjustment Side Adjustment
Temperature Coefficient - - -
Rotation 300° 300° 300°
Resistive Material Carbon Carbon Carbon
Termination Style PC Pins PC Pins PC Pins
Actuator Type Knurled and Slotted Knurled and Slotted Knurled and Slotted
Actuator Length 0.787" (20.00mm) 0.787" (20.00mm) 0.787" (20.00mm)
Actuator Diameter 0.236" (6.00mm) 0.236" (6.00mm) 0.236" (6.00mm)
Bushing Thread M7 x 0.75 M7 x 0.75 M7 x 0.75
Mounting Type Panel Mount Panel Mount Panel Mount
