PDB181-E420K-104B
  • Share:

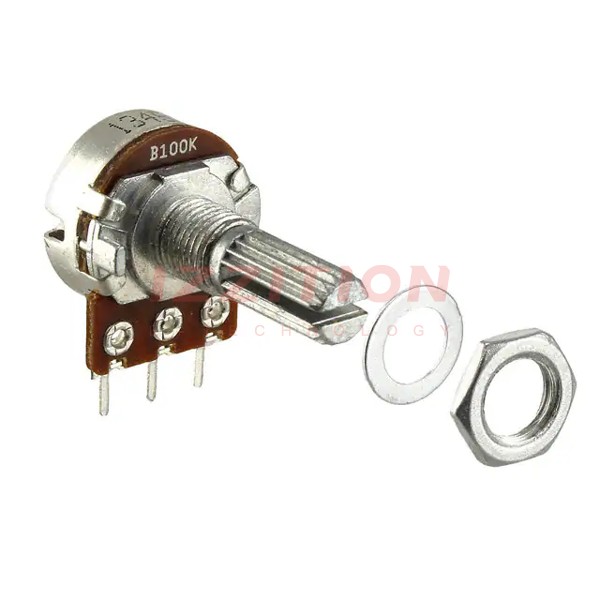

Bourns Inc. PDB181-E420K-104B

Manufacturer No:
PDB181-E420K-104B
Manufacturer:
Bourns Inc.
Package:
Bulk
Datasheet:
PDB181-E420K-104B Datasheet
ECAD Model:
-
Description:
POT 100K OHM 1/5W CARBON LINEAR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance (Ohms):100k
Tolerance:±20%
Power (Watts):0.2W, 1/5W
Built in Switch:None
Number of Turns:1
Features:-
Taper:Linear
Number of Gangs:1
Adjustment Type:User Defined
Temperature Coefficient:-
Rotation:300°
Resistive Material:Carbon
Termination Style:Solder Lug
Actuator Type:Knurled and Slotted
Actuator Length:0.787" (20.00mm)
Actuator Diameter:0.236" (6.00mm)
Bushing Thread:M7 x 0.75
Mounting Type:Panel Mount
0 Remaining View Similar

In Stock

$1.44
504

Please send RFQ , we will respond immediately.

Similar Products

Part Number PDB181-E420K-104B PDB181-K420K-104B   PDB181-E420K-105B   PDB181-E420K-504B   PDB181-A420K-104B   PDB181-E420K-102B   PDB181-E420K-103B
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active Active Active Active Active
Resistance (Ohms) 100k 100k 1M 500k 100k 1K 10k
Tolerance ±20% ±20% ±20% ±20% ±20% ±20% ±20%
Power (Watts) 0.2W, 1/5W 0.2W, 1/5W 0.2W, 1/5W 0.2W, 1/5W 0.2W, 1/5W 0.2W, 1/5W 0.2W, 1/5W
Built in Switch None None None None None None None
Number of Turns 1 1 1 1 1 1 1
Features - - - - - - -
Taper Linear Linear Linear Linear Linear Linear Linear
Number of Gangs 1 1 1 1 1 1 1
Adjustment Type User Defined Side Adjustment User Defined User Defined Side Adjustment User Defined User Defined
Temperature Coefficient - - - - - - -
Rotation 300° 300° 300° 300° 300° 300° 300°
Resistive Material Carbon Carbon Carbon Carbon Carbon Carbon Carbon
Termination Style Solder Lug PC Pins Solder Lug Solder Lug PC Pins Solder Lug Solder Lug
Actuator Type Knurled and Slotted Knurled and Slotted Knurled and Slotted Knurled and Slotted Knurled and Slotted Knurled and Slotted Knurled and Slotted
Actuator Length 0.787" (20.00mm) 0.787" (20.00mm) 0.787" (20.00mm) 0.787" (20.00mm) 0.787" (20.00mm) 0.787" (20.00mm) 0.787" (20.00mm)
Actuator Diameter 0.236" (6.00mm) 0.236" (6.00mm) 0.236" (6.00mm) 0.236" (6.00mm) 0.236" (6.00mm) 0.236" (6.00mm) 0.236" (6.00mm)
Bushing Thread M7 x 0.75 M7 x 0.75 M7 x 0.75 M7 x 0.75 M7 x 0.75 M7 x 0.75 M7 x 0.75
Mounting Type Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount
