PCS040-EF1313KS
  • Share:

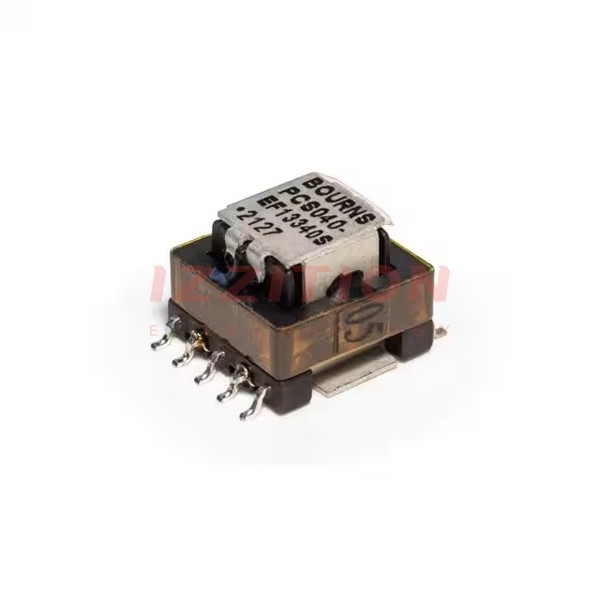

Bourns Inc. PCS040-EF1313KS

Manufacturer No:
PCS040-EF1313KS
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
PCS040-EF1313KS Datasheet
ECAD Model:
-
Description:
CURRENT SENSE TRANSF 40A 13300UH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Frequency Range:1MHz
Type:Invasive
Current Rating (Amps):40 A
Inductance:13.3 mH
ET (Volt-Time):317.5VµS
Turns Ratio - Primary:Secondary:1:125
Current Ratio:125:1
DC Resistance (DCR):1mOhm Primary, 1.85Ohm Secondary Max
Ratings:-
Mounting Type:Surface Mount
Size / Dimension:-
Height - Seated (Max):0.413" (10.50mm)
Termination Style:Gull Wing
0 Remaining View Similar

In Stock

$2.81
136

Please send RFQ , we will respond immediately.
