| Part Number | P6SMB120A-Q | P6SMB12A-Q | P6SMB12CA-Q | P6SMB130A-Q | P6SMB120CA-Q | P6SMB110A-Q |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | - | 1 | - | 1 |
| Bidirectional Channels | - | - | 1 | - | 1 | - |
| Voltage - Reverse Standoff (Typ) | 102V | 10.2V | 10.2V | 111V | 102V | 94V |
| Voltage - Breakdown (Min) | 114V | 11.4V | 11.4V | 124V | 114V | 105V |
| Voltage - Clamping (Max) @ Ipp | 165V | 16.7V | 16.7V | 179V | 165V | 152V |
| Current - Peak Pulse (10/1000µs) | 3.7A | 36.5A | 36.5A | 3.4A | 3.7A | 4A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No |
| Applications | Automotive, Telecom | Automotive, Telecom | Automotive, Telecom | Automotive, Telecom | Automotive, Telecom | Automotive, Telecom |
| Capacitance @ Frequency | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

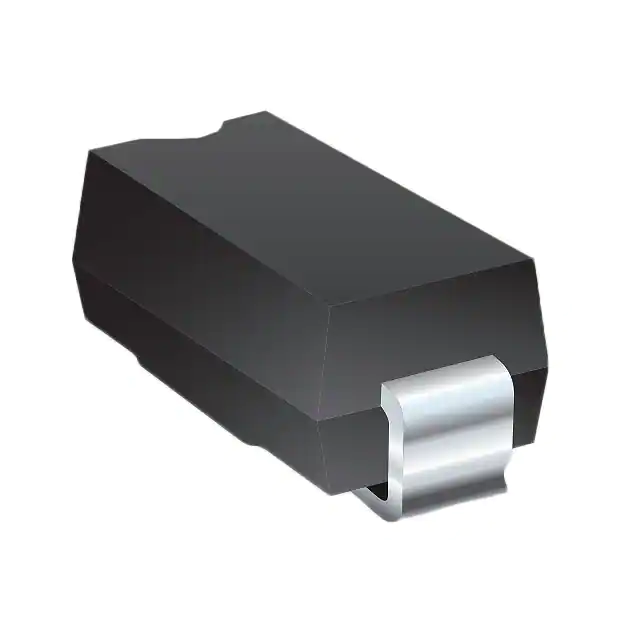

| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) |
