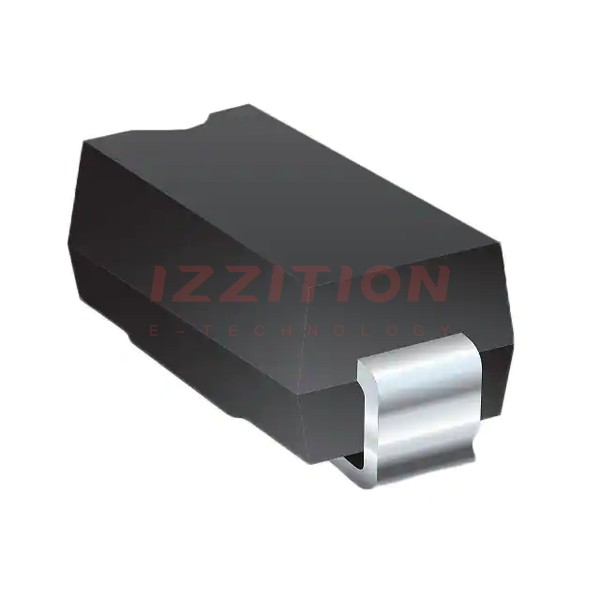

| Part Number | P6SMB11CA-Q | P6SMB12CA-Q | P6SMB10CA-Q | P6SMB110A-Q | P6SMB110CA-Q | P6SMB11A-Q |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | 1 | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | - | 1 | - |
| Voltage - Reverse Standoff (Typ) | 9.4V | 10.2V | 8.55V | 94V | 94V | 9.4V |
| Voltage - Breakdown (Min) | 10.5V | 11.4V | 9.5V | 105V | 105V | 10.5V |
| Voltage - Clamping (Max) @ Ipp | 15.6V | 16.7V | 14.5V | 152V | 152V | 15.6V |
| Current - Peak Pulse (10/1000µs) | 39.1A | 36.5A | 42.1A | 4A | 4A | 39.1A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No |
| Applications | Automotive, Telecom | Automotive, Telecom | Automotive, Telecom | Automotive, Telecom | Automotive, Telecom | Automotive, Telecom |
| Capacitance @ Frequency | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) |
