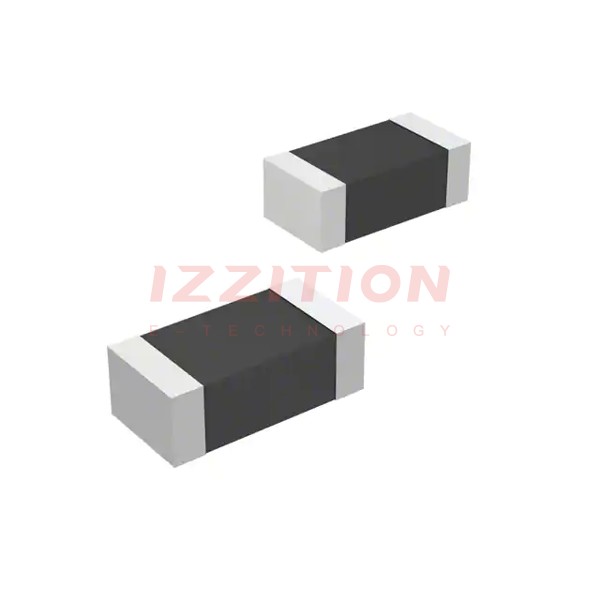

| Part Number | MU3261-121Y | MU3261-221Y | MU3261-122Y | MU3261-101Y |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Obsolete | Obsolete |
| Filter Type | Power, Signal Line | Power, Signal Line | Power, Signal Line | Power, Signal Line |
| Number of Lines | 1 | 1 | 1 | 1 |
| Impedance @ Frequency | 120 Ohms @ 100 MHz | 220 Ohms @ 100 MHz | 1.2 kOhms @ 100 MHz | 100 Ohms @ 100 MHz |
| Current Rating (Max) | 900mA | 700mA | 100mA | 500mA |
| DC Resistance (DCR) (Max) | 150mOhm | 350mOhm | 500mOhm | 150mOhm |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Features | - | - | - | - |
