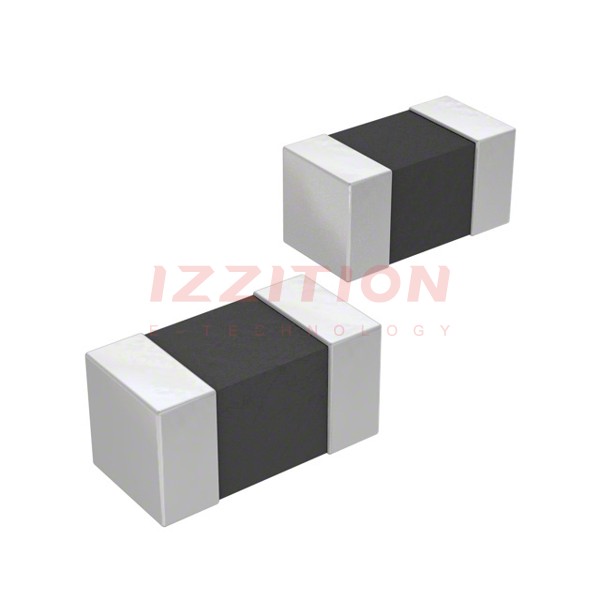

| Part Number | MU1005-300Y | MU1005-600Y | MU1005-301Y | MU1005-100Y |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Filter Type | Power, Signal Line | Power, Signal Line | Power, Signal Line | Power, Signal Line |
| Number of Lines | 1 | 1 | 1 | 1 |
| Impedance @ Frequency | 30 Ohms @ 100 MHz | 60 Ohms @ 100 MHz | 300 Ohms @ 100 MHz | 10 Ohms @ 100 MHz |
| Current Rating (Max) | 300mA | 300mA | 100mA | 500mA |
| DC Resistance (DCR) (Max) | 200mOhm | 250mOhm | 500mOhm | 100mOhm |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Features | - | - | - | - |
