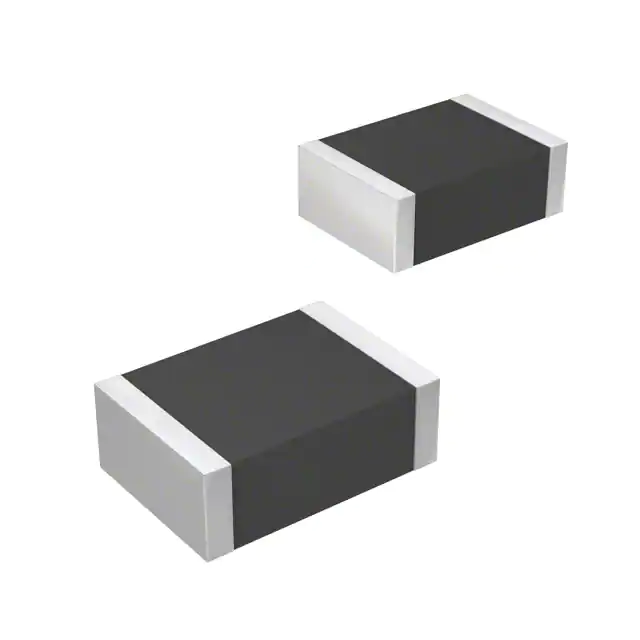

| Part Number | MH4532-131Y | MH4532-151Y | MH4532-132Y | MH4532-121Y |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Obsolete | Active |
| Filter Type | Power, Signal Line | Power, Signal Line | Power, Signal Line | Power, Signal Line |
| Number of Lines | 1 | 1 | 1 | 1 |
| Impedance @ Frequency | 130 Ohms @ 100 MHz | 150 Ohms @ 100 MHz | 1.3 kOhms @ 100 MHz | 120 Ohms @ 100 MHz |
| Current Rating (Max) | 3A | 5A | 3A | 3A |
| DC Resistance (DCR) (Max) | 40mOhm | 20mOhm | 60mOhm | 50mOhm |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 1812 (4532 Metric) | 1812 (4532 Metric) | 1812 (4532 Metric) | 1812 (4532 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.067" (1.70mm) | 0.067" (1.70mm) | 0.067" (1.70mm) | 0.067" (1.70mm) |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Features | - | - | - | - |
