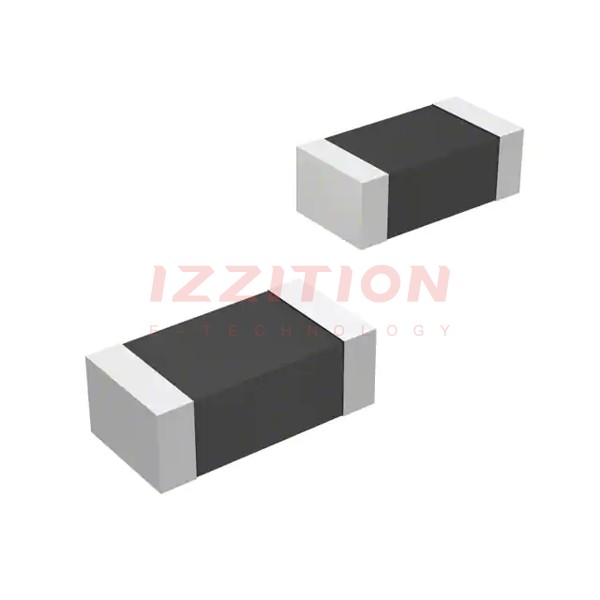

| Part Number | MH3261-501Y | MH3261-601Y | MH3261-101Y | MH3261-301Y | MH3261-500Y |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Filter Type | Power, Signal Line | Power, Signal Line | Power, Signal Line | Power, Signal Line | Power, Signal Line |
| Number of Lines | 1 | 1 | 1 | 1 | 1 |
| Impedance @ Frequency | 500 Ohms @ 100 MHz | 600 Ohms @ 100 MHz | 100 Ohms @ 100 MHz | 300 Ohms @ 100 MHz | 50 Ohms @ 100 MHz |
| Current Rating (Max) | 3A | 2A | 4A | 1A | 3A |
| DC Resistance (DCR) (Max) | 40mOhm | 100mOhm | 30mOhm | 200mOhm | 25mOhm |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Features | - | - | - | - | - |
