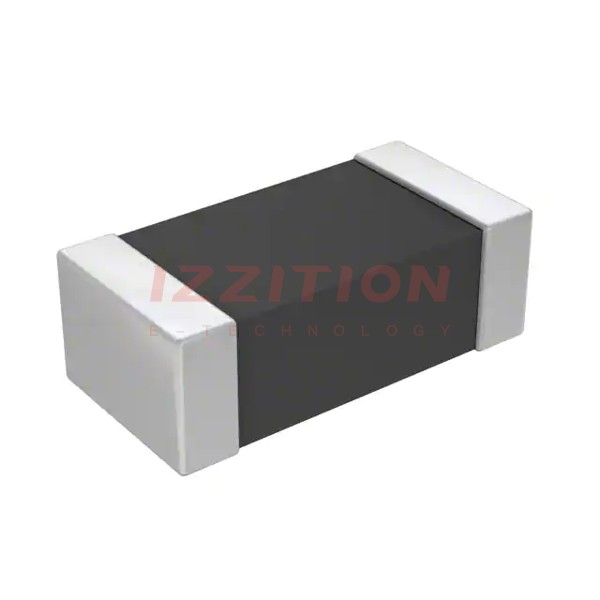

| Part Number | MH2029-101Y | MH2029-601Y | MH2029-121Y | MH2029-151Y | MH2029-301Y | MH2029-401Y | MG2029-101Y | MH2029-100Y |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Filter Type | Power, Signal Line | Power, Signal Line | Power, Signal Line | Power, Signal Line | Power, Signal Line | Power, Signal Line | Power, Signal Line | Power, Signal Line |
| Number of Lines | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Impedance @ Frequency | 100 Ohms @ 100 MHz | 600 Ohms @ 100 MHz | 120 Ohms @ 100 MHz | 150 Ohms @ 100 MHz | 300 Ohms @ 100 MHz | 400 Ohms @ 100 MHz | 100 Ohms @ 100 MHz | 10 Ohms @ 100 MHz |
| Current Rating (Max) | 2A | 1A | 2A | 2A | 1A | 2A | 400mA | 6A |
| DC Resistance (DCR) (Max) | 100mOhm | 200mOhm | 100mOhm | 100mOhm | 200mOhm | 100mOhm | 200mOhm | 10mOhm |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Features | - | - | - | - | - | - | - | - |
