Please send RFQ , we will respond immediately.

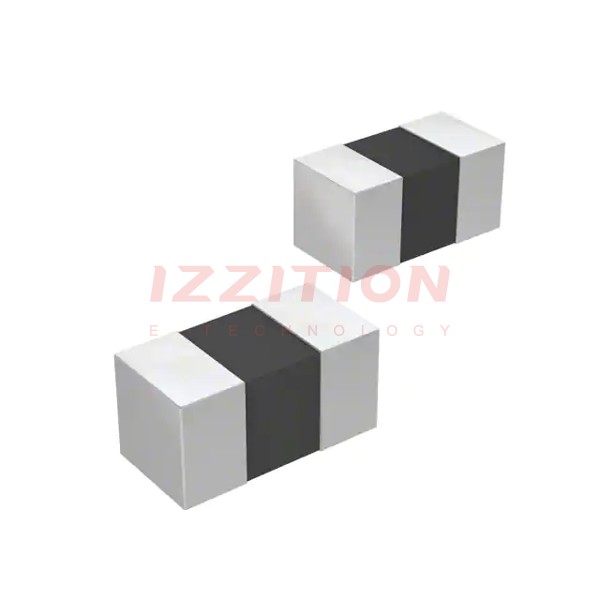

| Part Number | MH1608-101Y | MH1608-301Y | MH1608-601Y | MH1608-121Y | MH1608-151Y | MG1608-101Y | MH1608-100Y | MH1608-101T |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Filter Type | Power, Signal Line | Power, Signal Line | Power, Signal Line | Power, Signal Line | Power, Signal Line | Power, Signal Line | Power, Signal Line | Power, Signal Line |
| Number of Lines | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Impedance @ Frequency | 100 Ohms @ 100 MHz | 300 Ohms @ 100 MHz | 600 Ohms @ 100 MHz | 120 Ohms @ 100 MHz | 150 Ohms @ 100 MHz | 100 Ohms @ 100 MHz | 10 Ohms @ 100 MHz | 100 Ohms @ 100 MHz |
| Current Rating (Max) | 3A | 1A | 1A | 2A | 2A | 200mA | 6A | 3A |
| DC Resistance (DCR) (Max) | 40mOhm | 200mOhm | 200mOhm | 100mOhm | 100mOhm | 250mOhm | 100mOhm | 40mOhm |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Features | - | - | - | - | - | - | - | - |
