Please send RFQ , we will respond immediately.

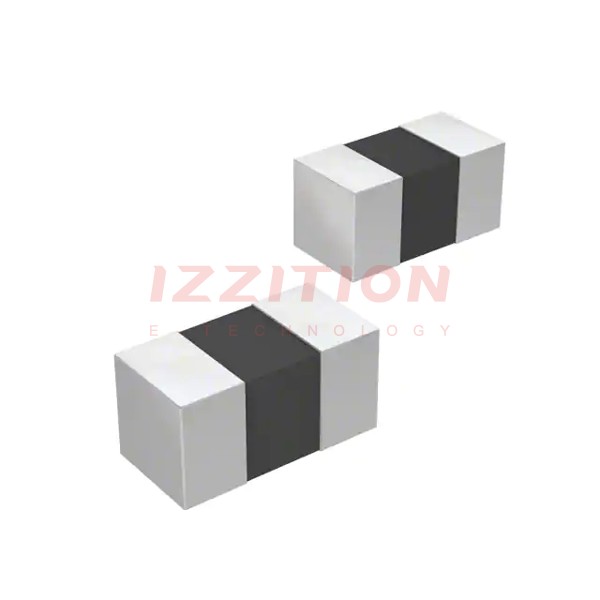

| Part Number | MH1608-100Y | MH1608-800Y | MH1608-101Y | MH1608-300Y | MH1608-600Y |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Filter Type | Power, Signal Line | Power, Signal Line | Power, Signal Line | Power, Signal Line | Power, Signal Line |
| Number of Lines | 1 | 1 | 1 | 1 | 1 |
| Impedance @ Frequency | 10 Ohms @ 100 MHz | 80 Ohms @ 100 MHz | 100 Ohms @ 100 MHz | 30 Ohms @ 100 MHz | 60 Ohms @ 100 MHz |
| Current Rating (Max) | 6A | 3A | 3A | 3A | 3A |
| DC Resistance (DCR) (Max) | 100mOhm | 40mOhm | 40mOhm | 60mOhm | 40mOhm |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| Features | - | - | - | - | - |
