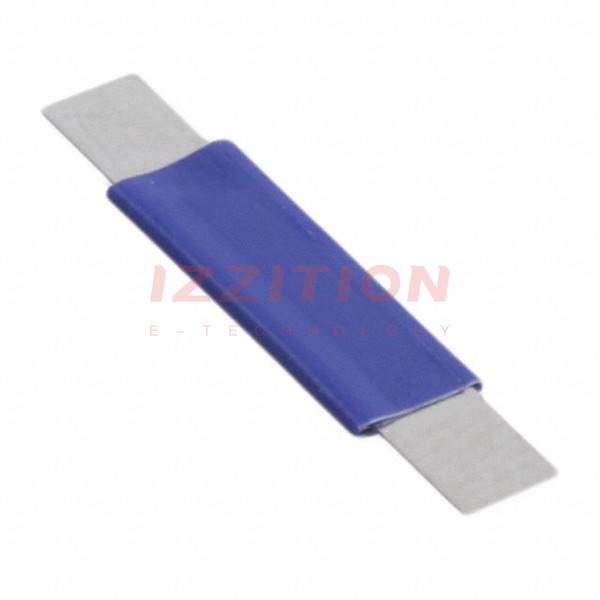

| Part Number | MF-VS175NL-0 | MF-VS175N-0 |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 12V | 12V |
| Current - Max | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 1.75 A | 1.75 A |
| Current - Trip (It) | 3.5 A | 3.5 A |
| Time to Trip | 3 s | 3 s |
| Resistance - Initial (Ri) (Min) | 29 mOhms | 29 mOhms |
| Resistance - Post Trip (R1) (Max) | 102 mOhms | 102 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | User Defined | User Defined |
| Package / Case | Strap | Strap |
| Size / Dimension | 1.063" L x 0.148" W (27.00mm x 3.75mm) | - |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.035" (0.90mm) | - |
| Lead Spacing | - | - |
