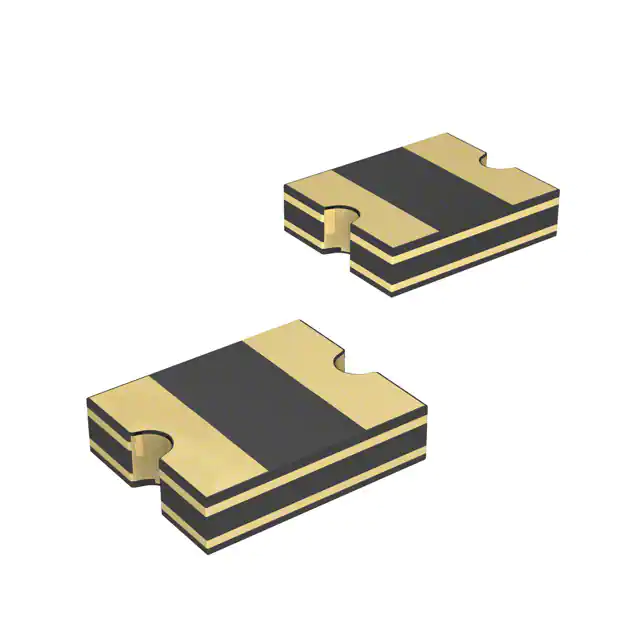

| Part Number | MF-USMF175-2 | MF-USMF175X-2 | MF-USML175-2 | MF-USMF075-2 |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Obsolete | Active |
| Type | Polymeric | - | Polymeric | Polymeric |
| Voltage - Max | 6V | 6V | 6V | 6V |
| Current - Max | 40 A | 40 A | 50 A | 40 A |
| Current - Hold (Ih) (Max) | 1.75 A | 1.75 A | 1.75 A | 750 mA |
| Current - Trip (It) | 3.5 A | 3.5 A | 3.5 A | 1.5 A |
| Time to Trip | 1 s | 1 s | 2.5 s | 100 ms |
| Resistance - Initial (Ri) (Min) | 20 mOhms | - | 6 mOhms | 70 mOhms |
| Resistance - Post Trip (R1) (Max) | 90 mOhms | - | 40 mOhms | 450 mOhms |
| Resistance - 25°C (Typ) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | - | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | AEC-Q200 | - | - | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric), Concave | 1210 (3225 Metric), Concave | 1210 (3225 Metric), Concave | 1210 (3225 Metric), Concave |
| Size / Dimension | 0.127" L x 0.102" W (3.22mm x 2.58mm) | 0.127" L x 0.102" W (3.22mm x 2.58mm) | 0.127" L x 0.102" W (3.22mm x 2.58mm) | 0.127" L x 0.102" W (3.22mm x 2.58mm) |
| Height - Seated (Max) | - | - | - | - |
| Thickness (Max) | 0.033" (0.85mm) | 0.033" (0.85mm) | 0.024" (0.60mm) | 0.033" (0.85mm) |
| Lead Spacing | - | - | - | - |
