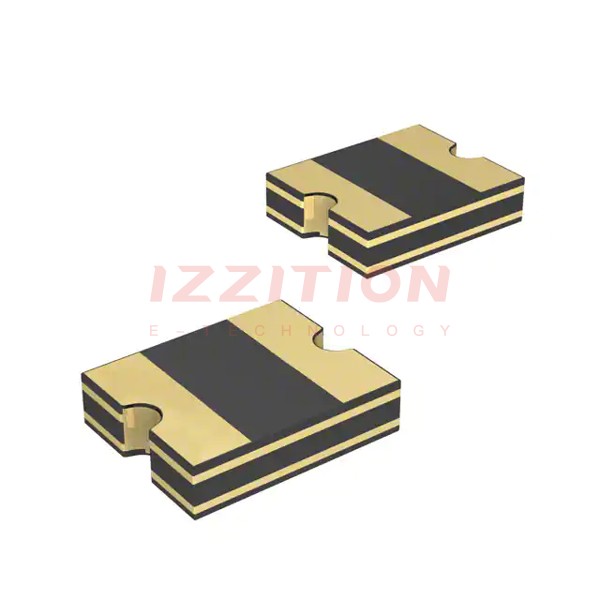

| Part Number | MF-USMF020-2 | MF-USMF050-2 | MF-USMD020-2 | MF-USMF010-2 |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Obsolete | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 30V | 13.2V | 30V | 30V |
| Current - Max | 10 A | 40 A | 10 A | 10 A |
| Current - Hold (Ih) (Max) | 200 mA | 500 mA | 200 mA | 100 mA |
| Current - Trip (It) | 400 mA | 1 A | 400 mA | 300 mA |
| Time to Trip | 20 ms | 100 ms | 20 ms | 600 ms |
| Resistance - Initial (Ri) (Min) | 400 mOhms | 180 mOhms | 400 mOhms | 800 mOhms |
| Resistance - Post Trip (R1) (Max) | 5 Ohms | 900 mOhms | 5 Ohms | 15 Ohms |
| Resistance - 25°C (Typ) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | AEC-Q200 | AEC-Q200 | - | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric), Concave | 1210 (3225 Metric), Concave | 1210 (3225 Metric) | 1210 (3225 Metric), Concave |
| Size / Dimension | 0.127" L x 0.102" W (3.22mm x 2.58mm) | 0.127" L x 0.102" W (3.22mm x 2.58mm) | 0.127" L x 0.102" W (3.22mm x 2.58mm) | 0.127" L x 0.102" W (3.22mm x 2.58mm) |
| Height - Seated (Max) | - | - | - | - |
| Thickness (Max) | 0.033" (0.85mm) | 0.033" (0.85mm) | 0.033" (0.85mm) | 0.033" (0.85mm) |
| Lead Spacing | - | - | - | - |
