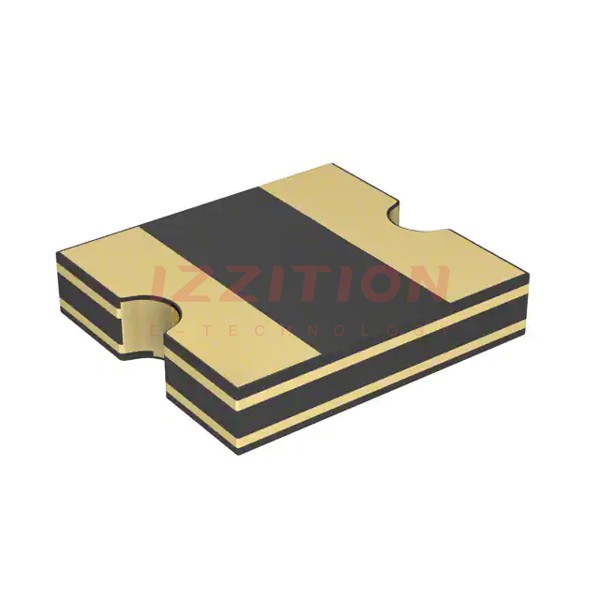

| Part Number | MF-SMDF150-2 | MF-SMDF050-2 | MF-SMDF100-2 |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Obsolete |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 15V | 60V | 15V |
| Current - Max | 40 A | 10 A | 40 A |
| Current - Hold (Ih) (Max) | 1.5 A | 550 mA | 1.1 A |
| Current - Trip (It) | 3 A | 1.2 A | 2.2 A |
| Time to Trip | 800 ms | 3 s | 500 ms |
| Resistance - Initial (Ri) (Min) | 50 mOhms | 200 mOhms | 100 mOhms |
| Resistance - Post Trip (R1) (Max) | 170 mOhms | 1 Ohms | 390 mOhms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2018 (5045 Metric), Concave | 2018 (5045 Metric), Concave | 2018 (5045 Metric), Concave |
| Size / Dimension | 0.200" L x 0.180" W (5.08mm x 4.58mm) | 0.200" L x 0.180" W (5.08mm x 4.58mm) | 0.200" L x 0.180" W (5.08mm x 4.58mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.033" (0.85mm) | 0.043" (1.09mm) | 0.049" (1.25mm) |
| Lead Spacing | - | - | - |
