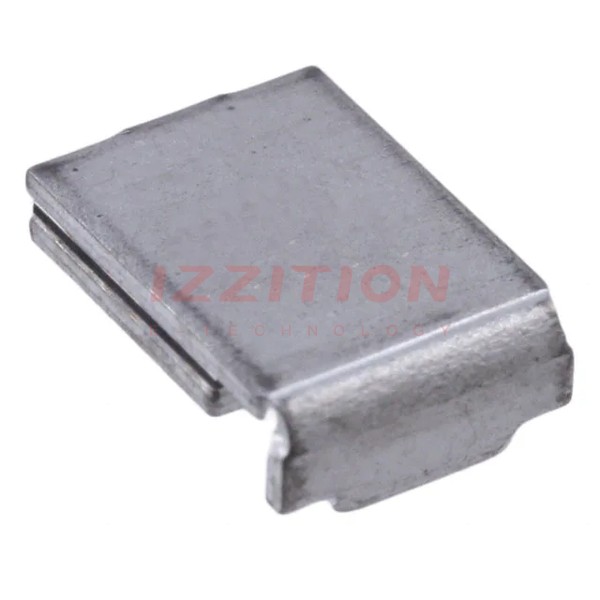

| Part Number | MF-SM250-2-006 | MF-SM150-2-006 |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 15V | 15V |
| Current - Max | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 2.5 A | 1.5 A |
| Current - Trip (It) | 5 A | 3 A |
| Time to Trip | 25 s | 5 s |
| Resistance - Initial (Ri) (Min) | 24 mOhms | 60 mOhms |
| Resistance - Post Trip (R1) (Max) | 85 mOhms | 250 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | AEC-Q200 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD | 2-SMD |
| Size / Dimension | 0.344" L x 0.264" W (8.75mm x 6.71mm) | 0.344" L x 0.264" W (8.75mm x 6.71mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
| Lead Spacing | - | - |
