MF-SM150-2-99
  • Share:

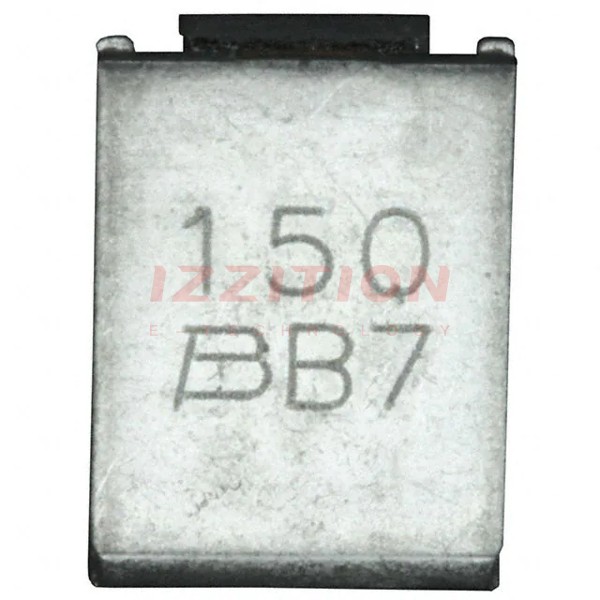

Bourns Inc. MF-SM150-2-99

Manufacturer No:
MF-SM150-2-99
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
MF-SM150-2-99 Datasheet
ECAD Model:
-
Description:
PTC RESET FUSE 15V 1.5A 2SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymeric
Voltage - Max:15V
Current - Max:100 A
Current - Hold (Ih) (Max):1.5 A
Current - Trip (It):3 A
Time to Trip:5 s
Resistance - Initial (Ri) (Min):60 mOhms
Resistance - Post Trip (R1) (Max):250 mOhms
Resistance - 25°C (Typ):-
Operating Temperature:-40°C ~ 85°C
Ratings:AEC-Q200
Mounting Type:Surface Mount
Package / Case:2-SMD
Size / Dimension:0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max):-
Thickness (Max):0.118" (3.00mm)
Lead Spacing:-
0 Remaining View Similar

In Stock

-
585

Please send RFQ , we will respond immediately.

Similar Products

Part Number MF-SM150-2-99 MF-SM250-2-99   MF-SM050-2-99   MF-SM100-2-99
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Obsolete Obsolete Obsolete Obsolete
Type Polymeric Polymeric Polymeric Polymeric
Voltage - Max 15V 15V 60V 30V
Current - Max 100 A 100 A 40 A 80 A
Current - Hold (Ih) (Max) 1.5 A 2.5 A 500 mA 1.1 A
Current - Trip (It) 3 A 5 A 1 A 2.2 A
Time to Trip 5 s 25 s 4 s 500 ms
Resistance - Initial (Ri) (Min) 60 mOhms 24 mOhms 350 mOhms 120 mOhms
Resistance - Post Trip (R1) (Max) 250 mOhms 85 mOhms 1.4 Ohms 480 mOhms
Resistance - 25°C (Typ) - - - -
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Ratings AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 2-SMD 2-SMD 2-SMD 2-SMD
Size / Dimension 0.344" L x 0.264" W (8.75mm x 6.71mm) 0.344" L x 0.264" W (8.75mm x 6.71mm) 0.287" L x 0.214" W (7.31mm x 5.44mm) 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) - - - -
Thickness (Max) 0.118" (3.00mm) 0.118" (3.00mm) 0.125" (3.18mm) 0.118" (3.00mm)
Lead Spacing - - - -
