MF-SM075-2-99
  • Share:

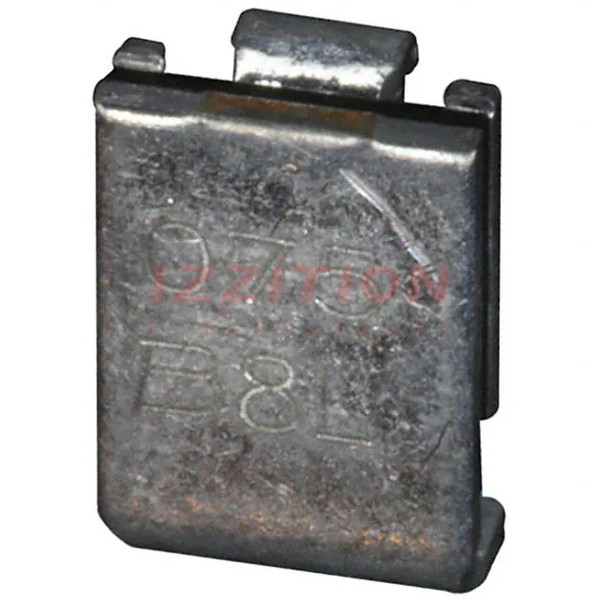

Bourns Inc. MF-SM075-2-99

Manufacturer No:
MF-SM075-2-99
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
MF-SM075-2-99 Datasheet
ECAD Model:
-
Description:
PTC RESET FUSE 30V 750MA 2SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymeric
Voltage - Max:30V
Current - Max:80 A
Current - Hold (Ih) (Max):750 mA
Current - Trip (It):1.5 A
Time to Trip:300 ms
Resistance - Initial (Ri) (Min):230 mOhms
Resistance - Post Trip (R1) (Max):1 Ohms
Resistance - 25°C (Typ):-
Operating Temperature:-40°C ~ 85°C
Ratings:AEC-Q200
Mounting Type:Surface Mount
Package / Case:2-SMD
Size / Dimension:0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max):-
Thickness (Max):0.125" (3.18mm)
Lead Spacing:-
0 Remaining View Similar

In Stock

-
196

Please send RFQ , we will respond immediately.
